SMC-MBD-X11SRL-F-O-00
MPN: MBD-X11SRL-F-O

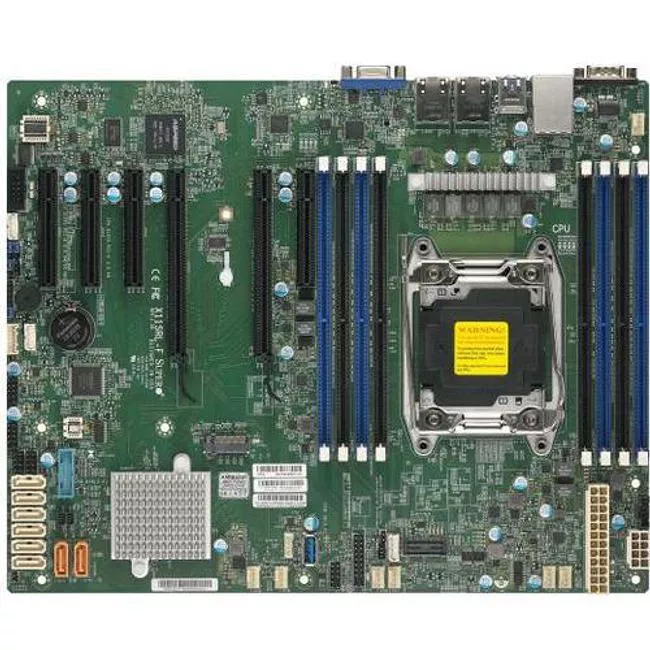

Supermicro MBD-X11SRL-F-O Server Motherboard - Intel C422 Chipset - Socket R4 LGA-2066

Highlights
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X11SRL-F-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X11SRL-F
Product Name
X11SRL-F Server Motherboard
Packaged Quantity
1
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
C422
Total Processor Supported
1
Processor Socket
Socket R4 LGA-2066
Processor Supported
Xeon
Memory
Number of Memory Slots
8
Memory Form Factor
  • DIMM
  • RDIMM
  • LRDIMM
    • Maximum Memory Supported
    512 GB
    Memory Technology
    DDR4 SDRAM
    Memory Speed Supported
  • 2666 MHz
  • 2400 MHz
  • 2133 MHz
    • I/O Controller
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 10
    • Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Model
    AST2500
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    6
    Total Number of PCI Express Slots
    6
    Number of PCI Express x8 Slots
    4
    Number of PCI Express x16 Slots
    2
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 2.0 Ports
    2
    Number of USB 3.0 Ports
    2
    VGA
    Yes
    Number of Network (RJ-45) Ports
    2
    Onboard Interfaces
    Number of SATA Interfaces
    8
    Number of M.2 Interfaces
    1
    Total Number of Onboard USB Ports
    7
    Number of Onboard USB 2.0 Ports
    4
    Number of Onboard USB 3.0 Ports
    3
    Physical Characteristics
    Form Factor
    ATX
    Width
    12"
    Depth
    9.6"
    Miscellaneous
    Compatibility

    Chassis

    • 825TQC-R740LPB
    • 825TQC-600LPB
    • LA25TQC-R609LP
    • LA26E1C4-R609LP
