SMC-MBD-M12SWA-TF-B-00
MPN: MBD-M12SWA-TF-B

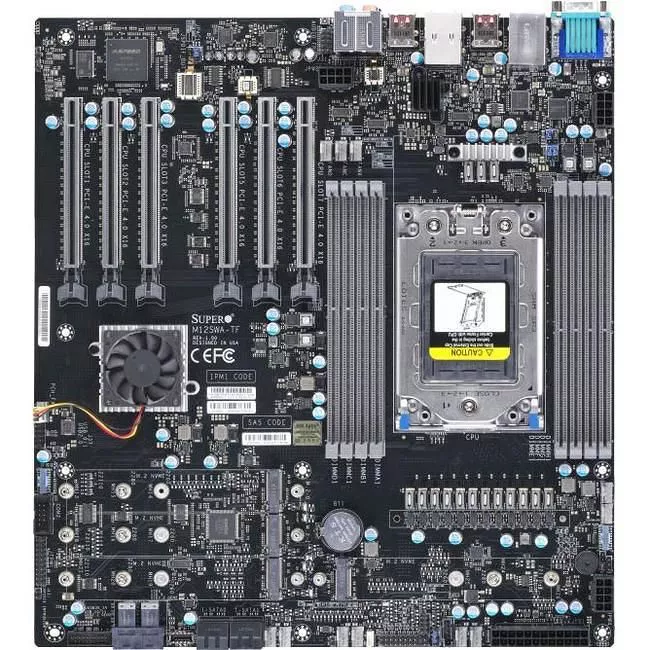

Supermicro MBD-M12SWA-TF-B Workstation Motherboard - AMD Chipset - Socket SP3 - EATX

Highlights
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-M12SWA-TF-B
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
M12SWA-TF
Product Name
M12SWA-TF Workstation Motherboard
Packaged Quantity
1
Package Type
Bulk
Product Type
Workstation Motherboard
Processor & Chipset
Chipset Manufacturer
AMD
Chipset Model
WRX80
Total Processor Supported
1
Processor Socket
Socket SP3
Processor Supported
Ryzen Threadripper
Memory
Number of Memory Slots
8
Memory Form Factor
  • RDIMM
  • UDIMM
    • Maximum Memory Supported
    2 TB
    Memory Technology
    DDR4 SDRAM
    Memory Speed Supported
    3200 MHz
    I/O Controller
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 10
    • Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Model
    AST2600
    Audio
    Audio Channels
    7.1
    Network & Communication
    Gigabit Ethernet
    Yes
    10Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    6
    Number of PCI Express x16 Slots
    6
    Interfaces/Ports
    Total Number of USB Ports
    9
    Number of USB 3.2 Ports
    9
    VGA
    Yes
    Number of Network (RJ-45) Ports
    2
    Onboard Interfaces
    Number of SATA Interfaces
    4
    Number of M.2 Interfaces
    4
    Total Number of Onboard USB Ports
    6
    Number of Onboard USB 2.0 Ports
    4
    Number of Onboard USB 3.2 Ports
    2
    Physical Characteristics
    Form Factor
    Extended ATX
    Width
    12"
    Depth
    13"
    Warranty
    Limited Warranty
    1 Year
