SMC-MBD-C9Z490-PGW-O-00
MPN: MBD-C9Z490-PGW-O

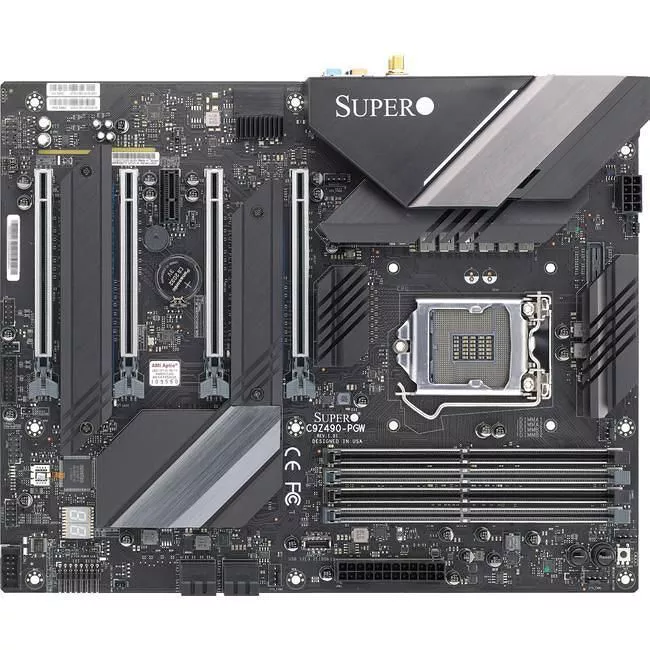

Supermicro MBD-C9Z490-PGW-O Desktop Motherboard - 1x LGA-1200 - Intel Z490 Chipset - ATX

Highlights
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-C9Z490-PGW-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
C9Z490-PGW
Product Name
C9Z490-PGW Desktop Motherboard
Packaged Quantity
1
Package Type
Retail
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
Z490
Total Processor Supported
1
Processor Socket
Socket LGA-1200
Processor Supported
  • Core i3
  • Core i5
  • Core i7
  • Core i9
  • Celeron
  • Pentium
    • Memory
    Number of Memory Slots
    4
    Memory Form Factor
  • DIMM
  • UDIMM
    • Maximum Memory Supported
    128 GB
    Memory Technology
    DDR4 SDRAM
    Memory Speed Supported
  • 2933 MHz
  • 4000 MHz
    • I/O Controller
    Controller Type
    Serial ATA/600
    Video
    Onboard Video
    CPU Dependent Video
    Audio
    Audio Channels
    7.1
    Network & Communication
    Bluetooth
    Yes
    Gigabit Ethernet
    Yes
    10Gigabit Ethernet
    Yes
    Wireless LAN
    Yes
    Wireless LAN Standard
    IEEE 802.11ax
    I/O Expansions
    Total Number of Expansion Slots
    5
    Total Number of PCI Express Slots
    5
    Number of PCI Express x1 Slots
    1
    Number of PCI Express x16 Slots
    4
    Interfaces/Ports
    Total Number of USB Ports
    6
    Number of USB 3.2 Ports
    6
    HDMI
    Yes
    DisplayPort
    Yes
    Onboard Interfaces
    Number of SATA Interfaces
    4
    Number of M.2 Interfaces
    3
    Total Number of Onboard USB Ports
    7
    Number of Onboard USB 2.0 Ports
    4
    Number of Onboard USB 3.2 Ports
    3
    Physical Characteristics
    Form Factor
    ATX
    Width
    12"
    Depth
    9.6"
    Miscellaneous
    Package Contents
    • C9Z490-PGW Desktop Motherboard
    • 4 x SATA Cables
    • 1 x BACK PLATE(I/O Shield)
    • 1 x S-Connector
    • 1 x Quick Reference Guide
    • 1 x Driver CD
    • 2 x WiFi+BT Antenna
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    1 Year

    Specifications
