MPN: CSE-847E2C-R1K28JBOD

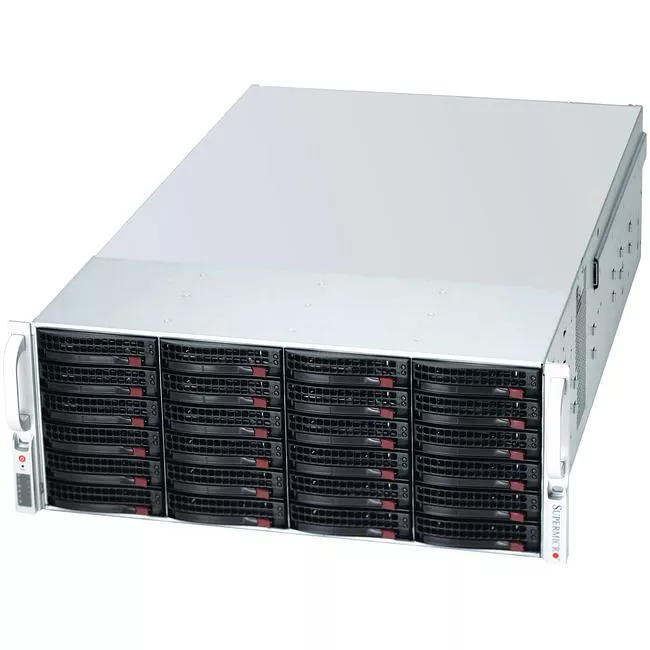

Supermicro CSE-847E2C-R1K28JBOD SuperChassis Drive Enclosure - 4U Rack-mountable - Black
Highlights
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
CSE-847E2C-R1K28JBOD
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperChassis
Product Model
847E2C-R1K28JBOD
Product Name
SuperChassis 847E2C-R1K28JBOD
Packaged Quantity
1
Product Type
Drive Enclosure
Controllers
Non-RAID Mode
JBOD
I/O Expansions
Number of Total Expansion Bays
44
Number of 3.5" Bays
44
Network & Communication
Ethernet Technology
Ethernet
Interfaces/Ports
Host Interface
Mini-SAS
Physical Characteristics
Product Color
Black
Cooling Fan
Yes
Form Factor
Rack-mountable
Rack Height
4U
Height
7"
Width
17.2"
Depth
27.5"
Miscellaneous
Package Contents
- SuperChassis 847E2C-R1K28JBOD
- 1 x SAS3 12Gb/s Dual Expander Backplane
- 1 x 24x 3.5" HDD Backplane Board for 846EL2
- 1 x Control Board
- 4 x SC847D JBOD Mini SAS HD Ext-to-Int Adapter
- 2 x 4 Pin to 4 Pin I2C Cable, 50cm, 26AWG,RoHS/REACH,PBF
- 4 x Internal Mini-SAS HD to Mini-SAS HD 35cm,30AWG,12Gb/s,HF,RoHS/REACH,PBF
- 1 x CAT 5e RJ45 Extension Cable for SC847D JBOD internal Male to Female Adapter with PCBA 500mm,24AWG,HF,RoHS/REACH,PBF
- 2 x 1U 1280W, Redundant Single Output Power Supply
- 1 x 24pin Standard Output with 5V High Current 100Amp Power Distributor Board for SC847
- 2 x NEMA 5-15P to C13 US Power Cord 16AWG 6ft, PBF (Default for High Watt)
- 1 x Round 16 pin to 16 pin Ribbon FP Cable 30
- 7 x 80x80x38 mm 7K RPM Chassis Middle Fan with Housing
- 44 x Black Gen 5.5 Hot-swap 3.5" HDD Trays
- 1 x Rail Set, Quick/quick, Default for 4U 17.2
Warranty
Limited Warranty
1 Year
