MPN: CSE-113TQ-R500CB

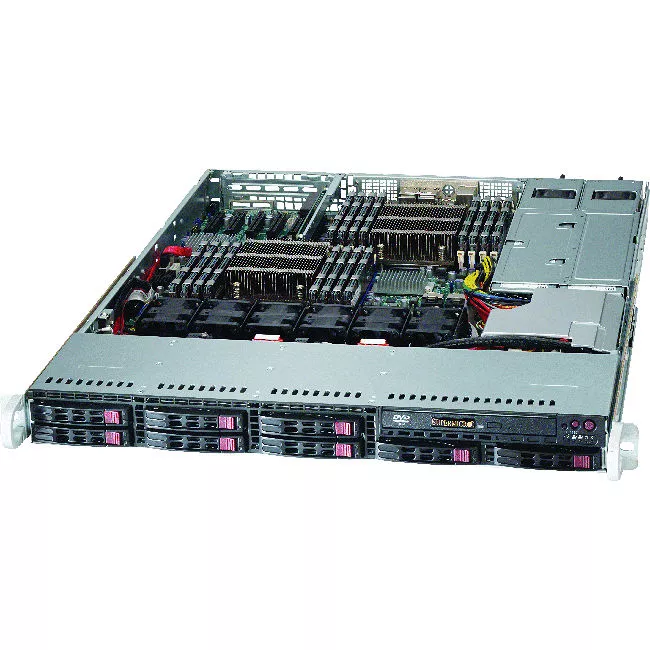

Supermicro CSE-113TQ-R500CB SuperChassis 113TQ-R500CB System Cabinet
Highlights
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
CSE-113TQ-R500CB
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperChassis
Product Model
113TQ-R500CB
Product Name
SuperChassis 113TQ-R500CB System Cabinet
Product Type
Server Case
Technical Information
Motherboard Supported
EATX
Number of Fans Supported
5
Number of Fans Installed
3
Bays
Number of External 5.25" Bays
1
Number of External 2.5" Bays
8
Number of Total Expansion Bays
9
I/O Expansions
Number of Total Expansion Slots
1
Power Description
Input Voltage
Number of Power Supplies Supported
2
Number of Power Supplies Installed
2
Power Supply Wattage
500 W
Redundant Power Supply
Yes
Physical Characteristics
Product Color
Black
Compatible Rack Unit
1U
Form Factor
Rack-mountable
Height
1.7"
Width
17.2"
Depth
23.5"
Miscellaneous
Package Contents
- SuperChassis 113TQ-R500CB System Cabinet
- 1 x Backplane Sup 8x2.5" Hot-swap SAS/SATA HDD, SATA con
- 2 x 48cm SATA Round S-RA PBF Cable
- 2 x 8pin to 8pin Ribbon Cable with Tube for SGPIO, 40cm, PBF
- 2 x 48cm SATA Round S-S PBF Cable
- 1 x SC112 24pin Redundant PWS Distributor
- 1 x Front Control cable 20pin to 20pin with Tube,70cm, PBF
- 1 x Black DVD Dummy Tray support 1x2.5 HDD for SC113,815,825,836
- 1 x Front Control Board for SC113,113M (U/C Share)
- 1 x Fan Holder for Six 40X56MM Counter Rotating Fans
- 3 x Dummy Fans 40x56mm for SC815T (cost-effective)
- 8 x Black gen 3 Hot swap 2.5" HDD Trays
- 1 x SC113 Control Panel Module (w/o DVD)
- 1 x Outer Rail Set, Screw Type
- 1 x Inner Rail Set, Front, Short, Screw Type
- 1 x Inner Rail Set, Extension, Long, Screw Type
- 1 x STD Rear Window for SC113 Redundant PWS
