Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
AS2123USTN24R25M
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
A+ Server
Product Model
2123US-TN24R25M
Product Name

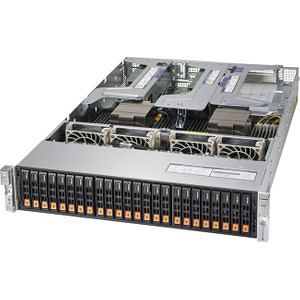

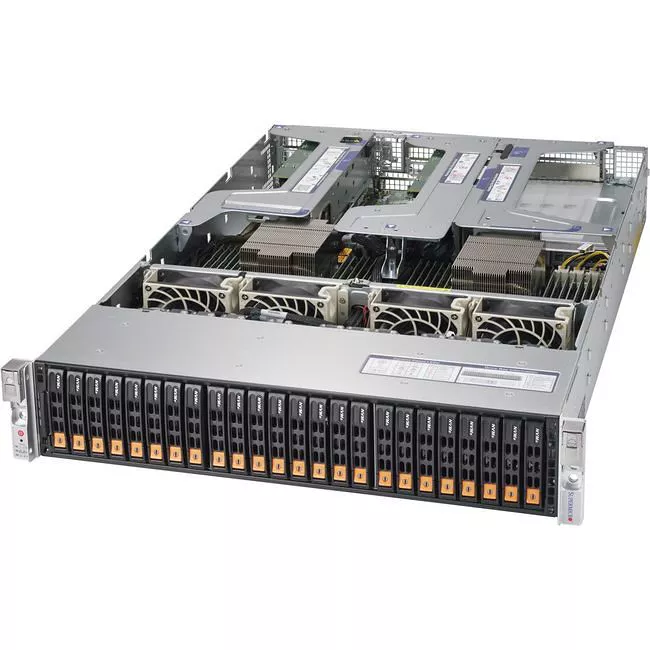

A+ Server 2123US-TN24R25M
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket SP3
Processor Supported
EPYC
64-bit Processing
Yes
Chipset
Chipset Manufacturer
AMD
Memory
Maximum Memory Supported
8 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-3200/PC4-25600
Number of Total Memory Slots
32
Storage
Supported Storage Drive Interfaces
Supported Storage Drive Types
Controllers
Controller Type
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
25 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
24
Number of Internal 2.5" Bays
24
Interfaces/Ports
Total Number of USB Ports
3
Number of USB 3.0 Ports
3
Network (RJ-45)
Yes
Number of VGA Ports
2
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
1600 W
Frequency
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
2U
Height
3.5"
Width
17.2"
Depth
28.5"
Weight (Approximate)
39 lb
Miscellaneous
Package Contents
- A+ Server 2123US-TN24R25M
- 1 x Super H11DSU-iN Motherboard
- 1 x 2U Chassis
- 1 x 2U Ultra 2-port 25G SFP28, 1x PCI-E 3.0 x8 (internal)
- 2 x NVMe AOC by 8,HF,RoHS/REACH
- 4 x NVMe AOC by 16,HF,RoHS/REACH
- 1 x 24-port 2U (SC216/219) NVMe direct-attached backplane, support 24x 2.5-inch NVMe devices, 4 of them are hybrid ports also support SAS3/SATA3
- 4 x 4 PIN MIDDLE FAN POWER CABLE (PWM). 27cm, 24AWG
- 2 x PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,15A,125V,RoHS/REACH
- 1 x CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,24CM,28AWG
- 1 x BPN PWR,2X4F/GPU-White to 2x2F,P4.2, 12V, 42CM,18AWG, 11A/pin, -25~85C
- 2 x BPN PWR,2X4F/GPU-White to 2x2F,P4.2, 12V, 67CM,18AWG, 11A/pin, -25~85C
- 1 x BPN PWR,2X4F/GPU-White to 2x2F,P4.2, 12V, 82CM,18AWG, 11A/pin, -25~85C
- 2 x OCuLink v. 1.0,INT,PCIe NVMe SSD, 55CM,34AWG
- 2 x OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACH
- 8 x MiniSAS HD source to OcuLink v 1.0,INT,PCIe, 76CM,34AWG,RoHS
- 12 x MiniSAS HD source to OcuLink v 1.0,INT,PCIe, 57CM,34AWG
- 4 x 80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH
- 20 x Black gen-3 2.5 NVMe drive tray, Orange tab with lock (improved EMI for hotswap NVMe drive)
- 4 x Black gen-3 2.5 NVMe drive tray, Orange tab with lock (improved EMI for hotswap NVMe drive)
- 1 x Plastic air shroud for SC819U, 119U, 829U, 219U (PWS),RoHS/REACH
- 2 x AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
- 1 x RSC-W2-66
- 1 x 1U RHS WIO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS
- 2 x 2U Passive CPU Heat Sink for AMD Socket SP3 Processors
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
Additional Warranty Information
3-Year Limited Warranty
