SMC-AS-2114GT-DNR-00
MPN: AS-2114GT-DNR

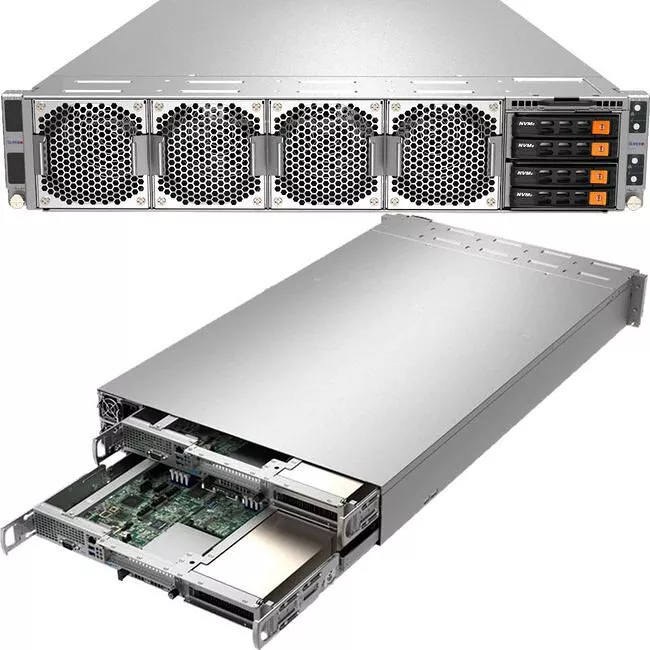

Supermicro AS-2114GT-DNR 2U Rack - 1x AMD EPYC 7003/7002 - 2600 W Redundant PSU Barebone

Highlights
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
AS-2114GT-DNR
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
A+ Server
Product Model
2114GT-DNR
Product Name
A+ Server 2114GT-DNR (Black)
Product Type
Barebone System
Processor
Number of Nodes
2
Number of Processors Supported
1
Processor Socket
Socket SP3
Processor Supported
EPYC
Chipset
Chipset Manufacturer
AMD
Memory
Maximum Memory Supported
2 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-3200/PC4-25600
Number of Total Memory Slots
8
Storage
Supported Storage Drive Interfaces
Serial ATA III
Controllers
Controller Type
Serial ATA/600
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2600
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
2
Number of Internal 2.5" Bays
2
Total Number of Expansion Slots
7.0
Number of PCI Express x16 Slots
7
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
Number of VGA Ports
1
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
    • Maximum Power Supply Wattage
    2600 W
    Physical Characteristics
    Color Family
    Black
    Product Color
    Black
    Form Factor
    Rack-mountable
    Rack Height
    2U
    Height
    3.5"
    Width
    17.6"
    Depth
    29.9"
    Weight (Approximate)
    48 lb
    Miscellaneous
    Package Contents
    • A+ Server 2114GT-DNR (Black)
    • 2 x Super H12SSG-AN6 Motherboard
    • 1 x 2U chassis
    • 1 x 2x5,PH2.54 to 2x5,PH2.54,5cm,22AWG
    • 2 x PWCD,US,IEC60320 C19 TO C20,940mm (3ft),14AWG,15A,250V,Black
    • 2 x GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C
    • 4 x GPU,2x4F/CPU to 2x4F/CPU,P4.2, 50CM,16AWG,10A/pin, -40~105C,
    • 2 x MicroFit,2x2, P3.0,F to MicroFit,2x2,P3.0,F,36CM,10A/pin
    • 1 x 2x4,PH3.0 to 2x4,PH3.0,5CM,9.4A,16AWG
    • 2 x 3x SlimlineLP x8 (STR) to 3x SlimlineLP x8 (STR),BNDL,FOLD,85 OHM
    • 2 x Slimline x8 (STR) to Slimline x8 (STR),INT,35CM,85 OHM
    • 2 x SlimsasLP x8 (STR) to SlimsasLP x8 (STR),FOLD,85 OHM
    • 2 x Dual 2.5 NVMe4 Drive Kit for 216B/826B/417B/846X/847B,RoHS
    • 2 x U Rear LHS GPU Riser card with twoPCI-E4.0x16slots,HF,R
    • 2 x U Front LHS GPU Riser card with two PCI-E 4.0x16slotsHF
    • 2 x U Front RHS GPU Riser card with two PCI-E4.0x16slots,HF
    • 2 x 1U Passive CPU Heat Sink for AMD Socket SP3 Processors
    • 1 x OOB Management Package (per node license)
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    3 Year

    Specifications
