SMC-AOC-MHIBF-M2Q2G-O-00
MPN: AOC-MHIBF-M2Q2G-O

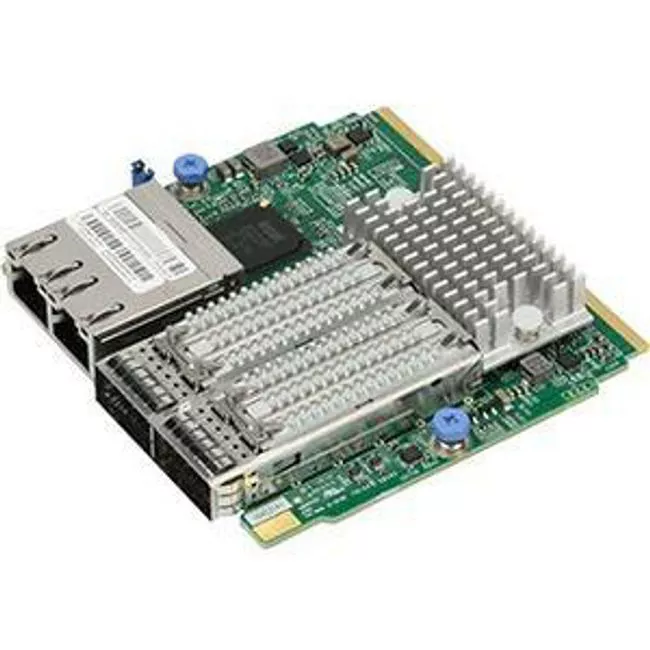

Supermicro AOC-MHIBF-M2Q2G-O SIOM 2-port IB FDR QSFP+ Mellanox CX-3 Pro and 2x GbE RJ45 Intel i350


Highlights
The Ultimate InfiniBand FDR Adapters, in Supermicro Super I/O Module (SIOM) Form Factor
The AOC-MHIBF-m2Q2G and AOC-MHIBF-m1Q2G are the most powerful InfiniBand controllers in the IT market. In small form factor SIOM, available as part of an integrated solution with Supermicro servers, they provide both InfiniBand FDR 56Gbps and 40Gbps Ethernet as well as remote server management through a dedicated Gigabit LAN controller. Based on Mellanox® ConnectX-3 Pro and Intel® i350 controllers, they provide the highest performing and most flexible interconnect solutions for Supermicro servers in Enterprise Data Centers and High-Performance Computing deployments.

Key Features:
  • Super I/O Module (SIOM) Form Factor
  • Mellanox® ConnectX-3 Pro InfiniBand FDR controller
  • Dual and Single QSFP connector models
  • Up to 56Gbps InfiniBand or 40Gbps Ethernet
  • Virtual Protocol Interconnect (VPI)
  • VXLAN and NVGRE
  • Intel® i350 GbE controller
  • Dual RJ45 Connectors
  • NC-SI for Remote Management
  • Asset Management Features with thermal sensor
  • RoHS compliant 6/6
