MPN: PCIESATA2I

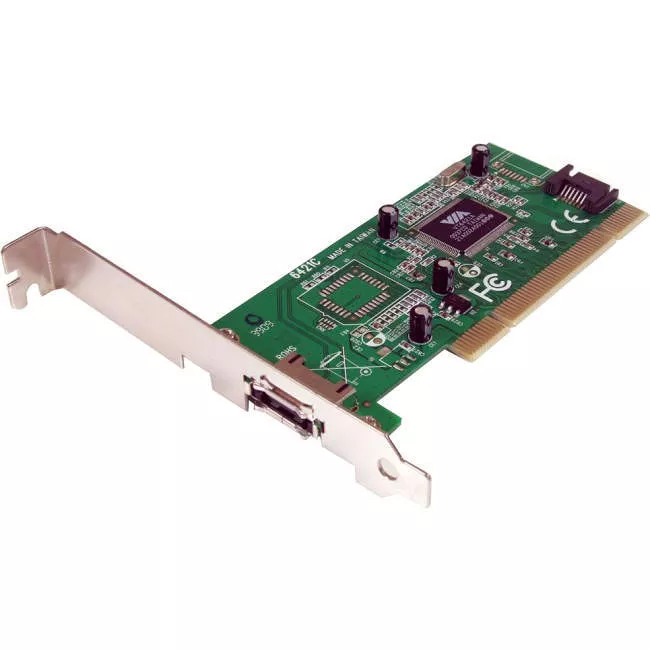

StarTech PCIESATA2I StarTech.com1 Port eSATA + 1 Port SATA PCI SATA Controller Card

Highlights

About

Specifications

This PCI based SATA Controller Card allows you to turn a PCI slot into one internal SATA and one external SATA (eSATA) connection. Supporting SATA 150 hard drives, and data transfer rates of up to 1.5Gbps, this controller card is the perfect solution if you need an extra SATA port or want to externalize your storage.

Specifications

General Information

Manufacturer

StarTech.com

Manufacturer Part Number

PCIESATA2I

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

1 Port eSATA + 1 Port SATA PCI SATA Controller Card w/ LP Bracket

Packaged Quantity

Product Type

SATA Controller

Technical Information

Host Interface

PCI

Controller Type

Serial ATA/150

Number of Physical Drive Supported

Interfaces/Ports

Total Number of SATA Ports

Number of SATA Ports (Internal)

Number of SATA Ports (External)

Physical Characteristics

Height

0.8"

Width

2.1"

Length

4.8"

Form Factor

Plug-in Card

Card Height

Dual-profile

Weight (Approximate)

1.60 oz

Miscellaneous

Package Contents

1 Port eSATA + 1 Port SATA PCI SATA Controller Card w/ LP Bracket
1 x SATA Data Cable
1 x Low Profile Bracket
1 x Software CD
1 x Instruction Manual

Platform Supported

Additional Information

Supports hard drives larger than 136GB with 48-bit LBA and SATA transfer rates up to 1.5Gbps
Both internal and external SATA ports and full and low profile/half-height installation options for a flexible SATA expansion
Backed by a StarTech.com 2-year warranty and free lifetime technical support

Environmentally Friendly

Yes

Country of Origin

Taiwan

TAA Compliant

Yes

Warranty

Limited Warranty

2 Year
