SPP-SPI5002UC-00
MPN: SPI5002UC

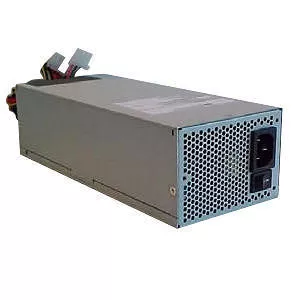

Sparkle Power SPI5002UC ATX12V & EPS12V 500W Power Supply

Highlights
General Information
Manufacturer
Sparkle Power, Inc
Manufacturer Part Number
SPI5002UC
Manufacturer Website Address
http://www.sparklepower.com
Brand Name
Sparkle Power
Product Model
SPI5002UC
Product Name
SPI5002UC ATX12V & EPS12V Power Supply
Product Type
Power Supply
Technical Information
Specification Compliance
ATX12V/EPS12V
Efficiency
85%
Power Factor Correction (PFC)
Active
Number of Fans
1
Protection Type
  • Output Over Voltage
  • Short Circuit
  • Over Current
    • Reliability
    MTBF
    100000 Hour
    Power Description
    Input Voltage
  • 110 V AC
  • 220 V AC
    • Input Voltage Range
    90 V AC - 264 V AC
    Output Voltage
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
    • Output Voltage Detail
  • 3.3 V DC @ 24 A
  • 5 V DC @ 20 A
  • 12 V DC @ 15 A
  • -12 V DC @ 500 mA
  • 5 V DC @ 2.5 A
    • Input Current
  • 10 A @ 110V
  • 5 A @ 220V
    • Output Current
  • 24 A
  • 20 A
  • 15 A
  • 500 mA
  • 2.50 A
    • Output Power
    500 W
    Physical Characteristics
    Height
    2.7"
    Width
    3.9"
    Depth
    9.4"
    Miscellaneous
    Additional Information
    12V Rails: 3
    Environmentally Friendly
    Yes

    Specifications
