SPP-SPI4001UG-B204-00
MPN: SPI4001UG-B204

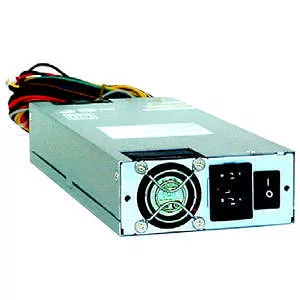

Sparkle Power SPI4001UG-B204 EPS12V 400W Power Supply

Highlights
General Information
Manufacturer
Sparkle Power, Inc
Manufacturer Part Number
SPI4001UGB204
Manufacturer Website Address
http://www.sparklepower.com
Brand Name
Sparkle Power
Product Name
EPS12V Power Supply
Product Type
Power Supply
Technical Information
Specification Compliance
EPS12V
Efficiency
86%
Power Factor Correction (PFC)
Active
Number of Fans
1
Protection Type
  • Output Over Voltage
  • Short Circuit
  • Over Current
    • Reliability
    MTBF
    100000 Hour
    Power Description
    Input Voltage
  • 110 V AC
  • 220 V AC
    • Input Voltage Range
    90 V AC - 264 V AC
    Output Voltage
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
    • Output Voltage Detail
  • 3.3 V DC @ 20 A
  • 5 V DC @ 20 A
  • 12 V DC @ 16 A
  • -12 V DC @ 500 mA
  • 5 V DC @ 2.5 A
    • Output Current
  • 20 A
  • 16 A
  • 500 mA
  • 2.50 A
    • Output Power
    400 W
    Interfaces/Ports
    Receptacles
  • 1 x 24-pin ATX Motherboard
  • 1 x 4-pin ATX12V Motherboard
  • 1 x 8-pin EPS12V Motherboard
    • Physical Characteristics
    Height
    8.7"
    Width
    3.9"
    Depth
    1.6"
    Miscellaneous
    Additional Information
    • 1 x 20+4 Pin Main connector
    • 2 x 12V Rails
    • Remote ON/OFF function
    • Noise Killer (thermal fan speed control function)
    • Low noise and ripple
    • Re-settable power shut down
    Environmentally Friendly
    Yes
    Energy Efficiency Certification
    80 Plus Standard

    Specifications
