SPP-SPI300F4BB-00
MPN: SPI300F4BB

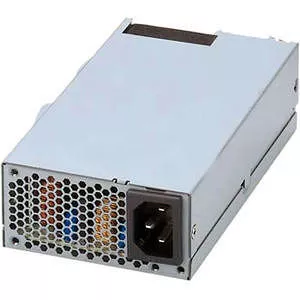

Sparkle Power SPI300F4BB 300 Watts FLEX ATX Power Supply

Highlights
General Information
Manufacturer
Sparkle Power, Inc
Manufacturer Part Number
SPI300F4BB
Manufacturer Website Address
http://www.sparklepower.com
Brand Name
Sparkle Power
Product Name
300 Watts FLEX ATX Power Supply
Product Type
Power Supply
Technical Information
Specification Compliance
ATX12V
Efficiency
82%
Power Factor Correction (PFC)
Active
Number of Fans
1
Protection Type
  • Output Over Voltage
  • Over Current
  • Short Circuit
    • Reliability
    MTBF
    100000 Hour
    Power Description
    Number of +12V Rails
    2
    Input Voltage Type
    AC
    Input Voltage
  • 110 V AC
  • 220 V AC
    • Input Voltage Range
    90 V AC - 264 V AC
    Output Voltage
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
    • Output Voltage Detail
  • 3.3 V DC @ 16 A
  • 5 V DC @ 18 A
  • 12 V DC @ 15 A
  • -12 V DC @ 500 mA
  • 5 V DC @ 3 A
    • Input Current
  • 6 A @ 110V
  • 3 A @ 220V
    • Output Current
  • 16 A
  • 18 A
  • 15 A
  • 500 mA
  • 3 A
    • Output Power
    300 W
    Interfaces/Ports
    Receptacles
  • 1 x 20+4pin ATX Motherboard
  • 1 x 4-pin ATX12V Motherboard
  • 2 x Serial ATA
  • 3 x 4-pin LP4 Peripheral Device
  • 1 x 4-pin SP4 Floppy Drive
    • Physical Characteristics
    Form Factor
    Internal
    Height
    1.6"
    Width
    3.2"
    Depth
    5.9"
    Weight (Approximate)
    1.80 lb
    Miscellaneous
    Environmentally Friendly
    Yes
    Energy Efficiency Certification
    80 Plus Bronze
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    1 Year
