SPP-SPI150FA-00
MPN: SPI150FA

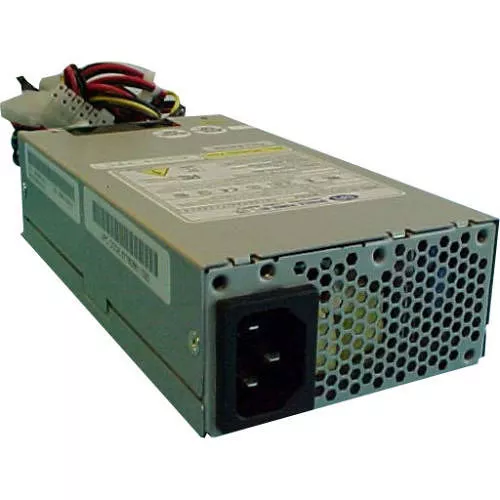

Sparkle Power SPI150FA ATX12V 150W Power Supply

Highlights
General Information
Manufacturer
Sparkle Power, Inc
Manufacturer Part Number
SPI150FA
Manufacturer Website Address
http://www.sparklepower.com
Brand Name
Sparkle Power
Product Model
SPI150FA
Product Name
SPI150FA ATX12V Power Supply
Product Type
Power Supply
Technical Information
Specification Compliance
ATX12V
Efficiency
68%
Power Factor Correction (PFC)
Active
Number of Fans
1
Protection Type
  • Output Over Voltage
  • Output Short Circuit
  • Output Over Current
    • Reliability
    MTBF
    100000 Hour
    Power Description
    Number of +12V Rails
    1
    Input Voltage Type
    AC
    Input Voltage
  • 110 V AC
  • 220 V AC
    • Input Voltage Range
    90 V AC - 264 V AC
    Output Voltage
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
    • Output Voltage Detail
  • 3.3 V DC @ 10 A
  • 5 V DC @ 13 A
  • 12 V DC @ 10 A
  • -12 V DC @ 500 mA
  • 5 V DC @ 2 A
    • Input Current
  • 4 A @ 110V
  • 2 A @ 220V
    • Output Current
  • 10 A
  • 13 A
  • 500 mA
  • 2 A
    • Output Power
    150 W
    Interfaces/Ports
    Receptacles
  • ATX Motherboard
  • 4-pin ATX12V Motherboard
    • Physical Characteristics
    Form Factor
    Internal
    Height
    1.6"
    Width
    3.2"
    Depth
    5.9"
    Miscellaneous
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)

    Specifications
