SPP-ATX-450PN-B204-00
MPN: ATX-450PN-B204

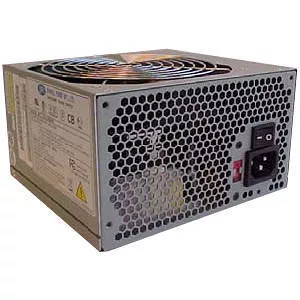

Sparkle Power ATX-450PN-B204 ATX12V & EPS12V 450 W Power Supply

Highlights
General Information
Manufacturer
Sparkle Power, Inc
Manufacturer Part Number
ATX450PNB204
Manufacturer Website Address
http://www.sparklepower.com
Brand Name
Sparkle Power
Product Model
ATX-450PN-B204
Product Name
ATX-450PN-B204 ATX12V & EPS12V Power Supply
Product Type
Power Supply
Technical Information
Specification Compliance
ATX12V/EPS12V
Efficiency
70%
Number of Fans
1
Protection Type
  • Output Over Voltage
  • Output Short Circuit
  • Output Over Current
    • Reliability
    MTBF
    100000 Hour
    Power Description
    Number of +12V Rails
    2
    Input Voltage
  • 110 V AC
  • 220 V AC
    • Input Voltage Range
    110 V AC - 240 V AC
    Output Voltage
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
    • Output Voltage Detail
  • 3.3 V DC @ 22 A
  • 5 V DC @ 15 A
  • 12 V DC @ 18 A
  • -12 V DC @ 300 mA
  • 5 V DC @ 2.5 A
    • Input Current
  • 10 A @ 110V
  • 5 A @ 220V
    • Output Current
  • 22 A
  • 15 A
  • 18 A
  • 300 mA
  • 2.50 A
    • Output Power
    450 W
    Interfaces/Ports
    Receptacles
  • 1 x 20+4pin ATX Motherboard
  • 1 x 4+4pin ATX12V Motherboard
  • 1 x 6-pin PCI-E
  • 5 x Serial ATA
  • 1 x 4-pin SP4 Floppy Drive
  • 6 x 4-pin LP4 Peripheral Device
    • Physical Characteristics
    Form Factor
    Internal
    Height
    3.4"
    Width
    5.9"
    Depth
    5.5"
    Miscellaneous
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
