An energy-efficient ultra slim PC for Triple displays

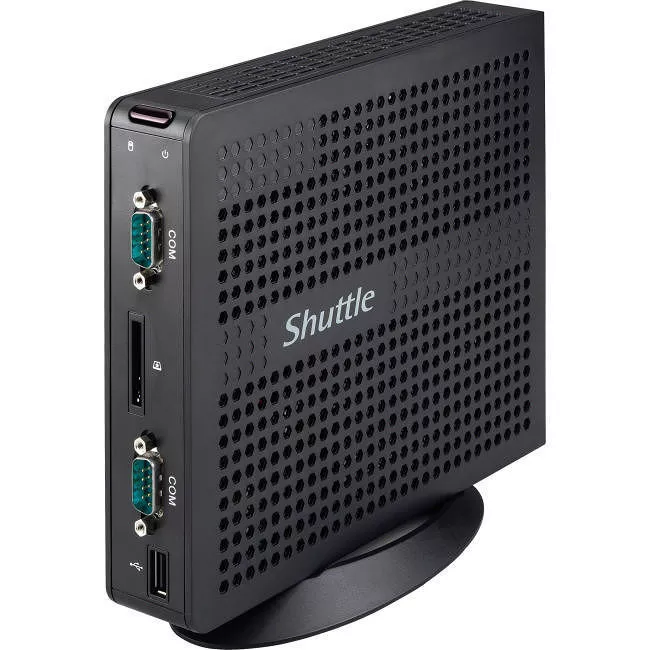

The new XS36V5 features only 36mm-thin ultra slim design with multiple USB ports as well as one RS232 and one RS232/422/485 which support 0V/5V/12V, designed for POS, POI, Kiosk, digital signage, and more applications. The XS36V5 supports Intel® Braswell platform technology with integrated Intel® 8th generation HD Graphic Engine, capable to playback Full HD video content. At the back panel of XS36V5 provides DisplayPort, HDMI, and D-sub ports to support three independent screens. It has approved for 24/7 nonstop operation within in 0-40 °C application environments. The combination of fanless cooling design and VESA mount capability with a mere 40W adapter makes XS36V5 suitable for diverse commercial applications.
Intel® Braswell Platform Technology
The XS36V5 supports Intel® Braswell platform technology, equipped with 14 nm Intel® Celeron® N3050 dual-core processor. Support 1.35V DDR3L low-voltage memory with a maximum capacity up to 8GB, able to reduce thermal energy production and overall energy consumption.
The XS36V5 uses a thermal module with cooled heat pipes to transmit heat throughout the system quickly and evenly. The fanless design reduces power consumption required by a fan as well as the cost of replacing fans on-site. Use with solid-state disks and create an operational platform completely free of noise.
Connectivity with two RS232 ports
The XS36V5 features two RS232 ports (one RS232 and one RS232/RS422/RS485) which both support 0V/5V/12V. Connect with barcode scanners, receipt printers, keypads, and other peripherals. The XS36V5 is easily configured into peripheral-heavy POS, Kiosk, and Digital Signage systems.
Support wire and wireless high-speed networks
The XS36V5 has built-in Intel® i211 Gigabit LAN and supports Wake On LAN to provide high-speed data transfer capability as well as a better compatibility for business network environment. With a built-in IEEE 802.11 b/g/n wireless network module*, providing high-speed wireless data transmission speed.
*Detail of WiFi support, please refer to the spec sheet.
24/7 Nonstop Operation
Officially approved for 24/7 permanent operation. Thanks to Shuttle's low power consumption design and stable operation, the PC runs highly reliable and meets the long-term demands of digital signage or other vertical applications.
The Watchdog-protecting system security
Watchdog Timer provides excellent security protection for systems that need to operate continuously for a long period of time. Use Shuttle's Watch Dog utility to maintain normal operation and stability of the system at all times.
Support three independent displays
The XS36V5 provides HDMI, DisplayPort, D-Sub output to support three independent displays. Use an adaptor to convert HDMI into DVI interface and DisplayPort into HDMI or DVI interface for diversified signal selection.
Full HD video content support
TheXS36V5 is equipped with Intel® Celeron® N3050 dual-core processor and integrated Intel® 8th HD Graphic Engine, capable of playing Full HD video. Users can now send video and sound signal through a single wire with HDMI and DisplayPort connection.
