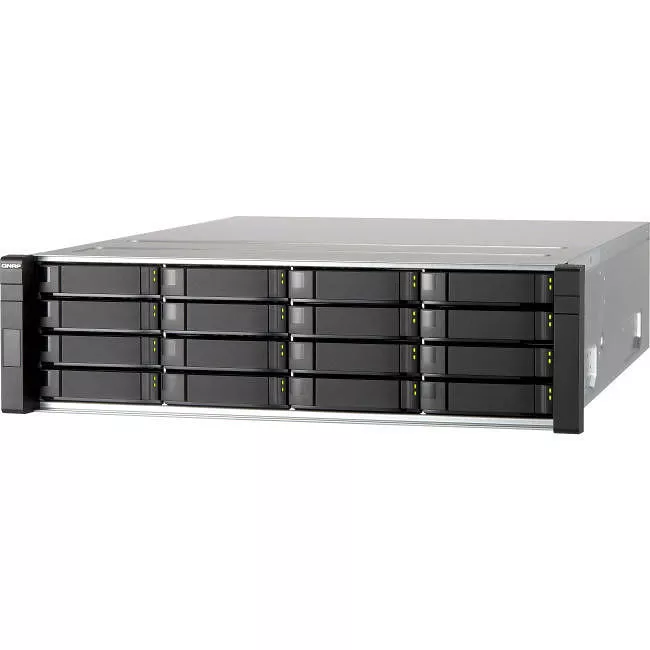

QNAP EJ1600US EJ1600 Drive Enclosure - 3U Rack-mountable
The EJ1600 expansion enclosure is designed for expanding the storage space on a QNAP Enterprise ZFS NAS by connecting multiple expansion enclosures via high-speed mini SAS cables. Featuring a 6 Gbps SAS interface on the chassis, the EJ1600 ensures fast data passthrough from 6 Gbps SAS-enabled Enterprise ZFS NAS even when using SATA hard drives. This is especially useful for virtualization applications and large data applications that require high-performance interconnection, such as video surveillance, archiving large data, and TV broadcast storage, to provide businesses with optimized efficiency and maximized ROI. The EJ1600 connects to the Enterprise ZFS NAS via the dual path mini-SAS design to sustain continuous operations even if an external JBOD cable is disconnected.
- Dual-channel (Dual Path) to tolerate single node failure for uninterrupted operations
- Missing Mode protection
- High density, high efficiency and high scalability
- Flexible management with the QES Storage Manager
- Ideal backup storage for the dual-controller Enterprise ZFS NAS
- Supports 6 Gbps SAS, backwards compatible with SATA hard drives and SSDs
Dual path design to ensure continuous operations
The EJ1600 and Enterprise ZFS NAS all provide dual-channel (Dual Path) to tolerate single node failure. Even if an external JBOD cable is disconnected due to external damage to the mini-SAS cable, it can still run normally. This is essential for intermachine data protection and capacity scalability for uninterrupted mission-critical enterprise tasks. Simply connect a EJ1600 to an Enterprise ZFS NAS and power it on, the NAS will detect hard drives in the EJ1600 as newly-installed local drives. You can seamlessly expand and manage the NAS capacity by using the powerful QES Storage Manager.
Missing Mode protection
When the disconnection of a RAID expansion enclosure is detected, the Enterprise ZFS NAS blocks IO access to protect data. The system can recover from missing mode to its normal state with the data staying intact.
High density, high efficiency and highly scalable
The EJ1600 supports 16 hard drives and 128TB raw capacity in 3U rack space. The EJ1600 has two SAS wide ports (IN and OUT ports) for each controller (with 4 SAS wide ports in total with dual controllers) for host connectivity and daisy-chaining respectively. Each SAS wide port combines four SAS channels, with each supporting 6 Gbps full duplex speed. The solution delivers unprecedented performance of up to 24 Gbps per host connection.
Powerful QES Storage Manager
The QES Storage Manager neatly presents tools and options for managing system storage with an intuitive graphical user interface, which simplifies the process of NAS capacity expansion and EJ1600 management. IT administrators can easily monitor the health of the EJ1600 and the disks within it. When cascading multiple expansion enclosures in a rack, the Locate Disk and Locate Enclosure functions assist IT administrators in quick maintenance.
An excellent backup solution for Enterprise ZFS NAS
In addition to expanding an existing volume, IT administrators can use the EJ1600 as a cost-effective external storage to perform speedy and secure backup tasks for an Enterprise ZFS NAS. The QNAP RTRR (Real-Time Remote Replication) or rsync service lets IT administrators back up NAS data to the EJ1600 on a real time or scheduled basis.
