ABOUT

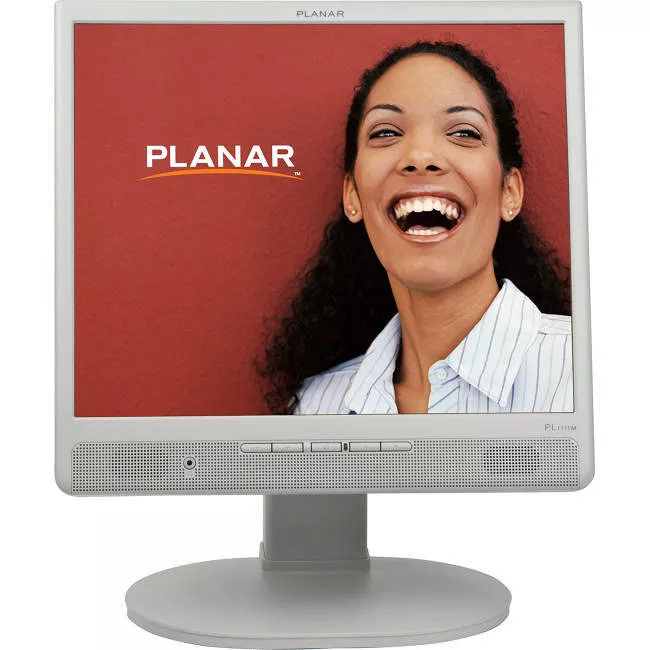

The Planar 17" PL1711M is the perfect monitor for office applications. The PL1711M features height, pivot, swivel, and tilt adjustment, as well as, DVI-D and analog inputs, integrated speakers and crisp, bright images. The result is an ideal monitor for office applications.
See More
SPECIFICATIONS
General Information
Manufacturer
Leyard
Manufacturer Part Number
997-5509-00
Manufacturer Website Address
http://www.planar.com
Brand Name
Planar
Product Series
PL
Product Model
PL1711M
Product Name
PL1711M LCD Monitor
Product Type
LCD Monitor
Technical Information
Number of Screens
1
Screen Size
17"
Screen Mode
SXGA
Screen Surface
Anti-glare
Response Time
5 ms
Aspect Ratio
5:4
Pixel Pitch
10.4 mil
Horizontal Viewing Angle
170°
Vertical Viewing Angle
160°
Adjustable Display Height
Yes
Adjustable Display Pivot
Yes
HDCP Supported
Yes
Tilt Angle
-5°to25°
Swivel Angle
35°
Features
Security Lock
Horizontal Frequency
80 kHz
Video
Maximum Resolution
1280 x 1024
Standard Refresh Rate
60 Hz
Color Supported
16.7 Million Colors
Contrast Ratio
1,000:1
Brightness
250 Nit
Audio
Number of Speakers
2
Speakers
Yes
Interfaces/Ports
DVI
Yes
VGA
Yes
Headphone
Yes
Built-in Devices
Built-in Devices
Speaker
Power Description
Input Voltage
Operating Power Consumption
25 W
Standby Power Consumption
2 W
Off-Mode Power Consumption
1 W
Physical Characteristics
VESA Mount Compatible
Yes
VESA Mount Standard
100 x 100
Color
White
Height
13.5"
Width
14.4"
Depth
2.5"
Height with Stand
23.20"
Width with Stand
14.40"
Depth with Stand
8.60"
Weight (Approximate)
14.80 lb
Miscellaneous
Package Contents
- PL1711M LCD Monitor
- 1 x DVI 24-pin connector
- 1 x VGA D-sub 15-in video connector
- 1 x 1/8 inch audio jack
Additional Information
Kensington Security slot
Certifications & Standards
- UL/cUL
- FCC-B
- CE
Platform Supported
Environmentally Friendly
Yes
Environmental Certification
RoHS
Country of Origin
China
Warranty
Limited Warranty
3 Year
