Highlights:
  • Maximum Resolution: 1920 x 1080
  • Brightness: 700 Nit
  • Platform Supported: PC | Mac
  • Product Type: LCD Monitor
Contact sales for pricing

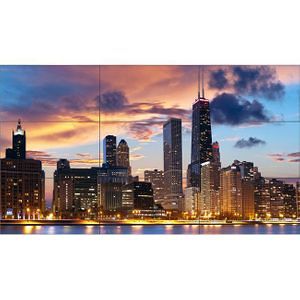

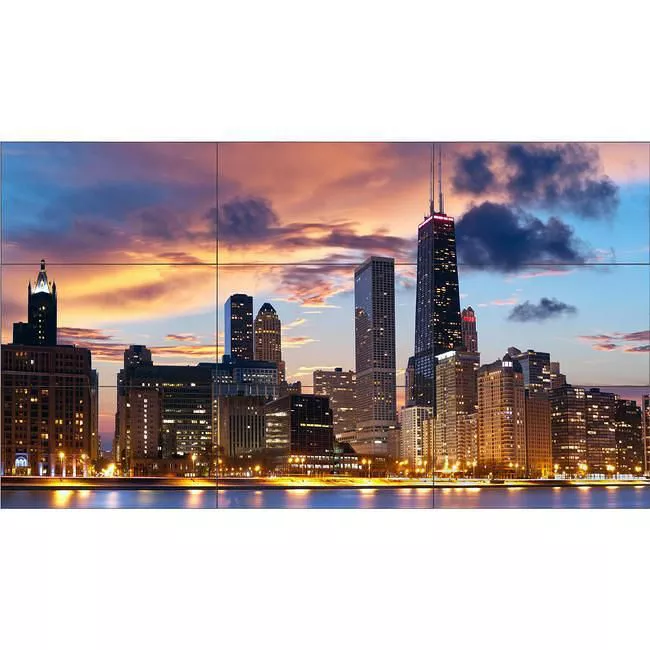

NEC's complete 46 3x3 LCD TileMatrix™ Video Wall Solution delivers an all-in-one, easy-to-configure and cost-effective solution that is ideal for dynamic digital signage and command & control applications. Exclusive TileMatrix and TileComp™ technologies combine with the ultra-narrow bezel of the NEC X463UN and the full adjustment capabilities of a Peerless-AV pull-out mount to allow for simple installation and easy access while servicing the video wall. The minimal bezel widths help to avoid interruption of the displayed content while included DVI and RS232 cables can be used to source digital signage content while controlling the display. An NEC Display Wall Calibrator kit is included, allowing for accurate brightness intensity, white point matching and greater color uniformity from screen-to-screen.

General Information
Manufacturer
NEC Display Solutions
Manufacturer Part Number
X463UN-TMX9P
Manufacturer Website Address
http://www.necdisplay.com
Brand Name
NEC Display
Product Model
X463UN-TMX9P
Product Name
(46") Ultra-Narrow 3x3 TileMatrix Video Wall Solution - Digital Pull-Out
Product Type
LCD Monitor
Technical Information
Number of Screens
9
Screen Size Class
46"
Viewable Screen Size
46"
Screen Mode
Full HD
Response Time
8 ms
Aspect Ratio
16:9
Horizontal Viewing Angle
178°
Vertical Viewing Angle
178°
Display Orientation
Landscape/Portrait
Backlight Technology
Direct LED
Features
  • Screen Saver
  • Security Lock
  • TileComp
  • TileMatrix Support
  • Carbon Footprint Meter
  • Ambient Light Sensor
  • Video Wall
  • Picture on Picture
  • Side-by-side View Support
  • Video
    Maximum Resolution
    1920 x 1080
    Standard Refresh Rate
    60 Hz
    Color Supported
    16.7 Million Colors
    Contrast Ratio
    3,500:1
    Brightness
    700 Nit
    Interfaces/Ports
    Network (RJ-45)
    Yes
    DVI
    Yes
    HDMI
    Yes
    VGA
    Yes
    Composite Video
    Yes
    S-Video
    Yes
    DisplayPort
    Yes
    Power Description
    Operating Power Consumption
    120 W
    Standby Power Consumption
    500 mW
    Physical Characteristics
    VESA Mount Compatible
    Yes
    VESA Mount Standard
    300 x 300
    Height
    22.8"
    Width
    40.3"
    Depth
    4.6"
    Height with Stand
    29"
    Width with Stand
    40.30"
    Depth with Stand
    13"
    Weight (Approximate)
    53.57 lb
    Miscellaneous
    Package Contents
    • (46") Ultra-Narrow 3x3 TileMatrix Video Wall Solution - Digital Pull-Out
    • 6 x Custom Spacers
    • 9 x DVI Loop-through Cables
    • DVI Cable
    • 9 x Peerless Mounts
    • 8 x Null Modem Cables
    • 3 x Tripp Lite Surge Suppressors
    • Display Wall Calibrator Kit
    • 3 x Overframe Bezel Kits
    • IR Remote Kit
    • Power Cord
    • Batteries
    • CD-ROM (User Manual)
    Platform Supported
  • PC
  • Mac
  • Warranty
    Limited Warranty
    3 Year
