MPN: SOL 2M EV CLBL*

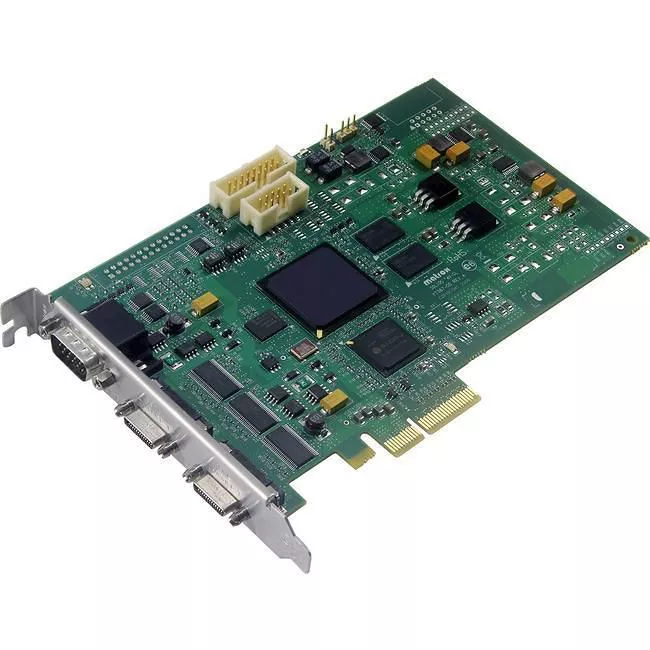

Matrox SOL 2M EV CLBL* PCIe x4 Camera Link Board - MDR26 (original CL) Connectors
Highlights
About
Specifications
New level of value
Matrox® Solios eV-CL ushers in a new level of value for Camera Link® frame grabbers. It provides connectivity to the market's most high-performance, multi-megapixel area- and line-scan Camera Link cameras, augmented with onboard Bayer interpolation (eV-CLB/CLBL models), color space conversions, and look-up tables (LUTs). The Matrox Solios eV-CL provides all these capabilities at an attractive price point.
Versatile Camera Link interface
For field-proven, low-latency, and deterministic acquisition, Camera Link provides a scalable solution conceived specifically for machine vision applications. From cost-sensitive low data-rate applications to mainstream applications including color and right up to maximum-bandwidth applications, Camera Link is an excellent fit. The introduction of the mini Camera Link connector (eV-CLB/CLF models) has led to compatibility with small-foot-print PCs, enabling two Base-mode Camera Link interfaces with triggering and general purpose I/O in a single slot. Even the most space-constrained systems can now support dual Base or single Medium/Full configurations.
The Matrox Solios eV-CLB/CLBL is capable of simultaneously capturing from two completely independent Base Camera Link cameras at up to 85 MHz. Fully supporting PoCL, the Matrox Solios eV-CLB/CLBL can reduce cabling complexity, eliminating the need for bulky and costly external camera power supplies. Alternatively, the Matrox Solios eV-CLF/CLFL-capable of handling a single Full Camera Link camera with up to 10-taps at 70 MHz-can acquire and reconstruct images from the most advanced multi-tap high-performance area- and line-scan cameras.
High-performance host interface
A PCIe x4 host interface provides the throughput necessary to ensure the continuous flow of pixels from Matrox Solios eV-CL frame grabbers to host memory. With a peak bandwidth of up to 1 GB/s, the Matrox Solios eV-CL's host interface prevents pixels from inadvertently being discarded, while the point-to-point connectivity of PCIe stops other add-in devices from consuming valuable bandwidth between the frame grabber and the host PC.
