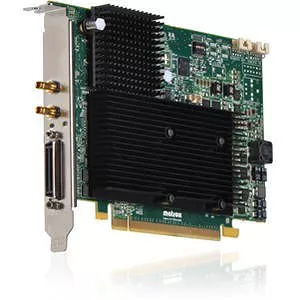

Matrox MURA-MPXSDIF Mura MPX-SDI Video Wall Controller

Redefine Your Video Wall Experience

The Matrox Mura MPX-SDI video wall controller board makes no compromises as it redefines the future of collaborative video walls and wall matrix management. The unique single-slot board design supports two 3G SDI video inputs and two DVI outputs on the same PCI Express x16 Gen1 board-leveraging 32 Gbit/sec duplex data transfer for the flawless display of 3G SDI video input captures without sacrificing frame rate, color or resolution. The Mura MPX-SDI video wall controller card can be combined with other Matrox Mura MPX Series boards to create tailored video wall solutions with support for additional digital and analog video inputs.

Features

• 3G SDI input/DVI output board supports 2x 3G SDI video inputs and 2x DVI outputs
• Combine multiple Matrox Mura MPX Series boards to drive desired channel requirements-all from a single system
• PCI Express x16 Gen1 host bus connection leverages 32 Gbit/s full duplex data transfer
• Maximum output resolution of 2048x1152 (SL-DVI) & 2048x1536 (RGB/VGA) per display
• Maximum input resolution of 1920x1080
• Supported SDI standards: 3G SDI (SMPTE 424M and SMPTE 425M Level A), HD SDI (SMPTE 292M and SMPTE 296M), and SD SDI (SMPTE 259M)
• HDCP compliant board outputs protected video content from digital cable, satellite set-top boxes, video streamers and Blu-ray™ players to HDCP-enabled displays when used with Matrox Mura MPX-4/4 and/or Matrox Mura MPX-4/2 boards
• Designed for control rooms, operation centers and other mission critical environments as well as digital signage, and #industries that require stable, reliable video wall technology
• Pair Mura IPX Series with Mura MPX boards in Matrox-certified platforms for 4K capture and multi-stream H.264 level 5.2 encoding/decoding over standard IP onto video walls up to 56 displays and a more favorable input-to-output ratio
• Supports Bezel Management as well as Edge Overlap for multi-projector platforms in both landscape and portrait modes
• Multi-functional board design facilitates video switching, signal conversion, scaling and de-interlacing from a single board, eliminating the need for separate solutions
• Hardware Framelock: Synchronization of multiple outputs provides tear-free display of captured video sources across multiple displays
