MTX-MURA-MPX42HF-00
MPN: MURA-MPX42HF

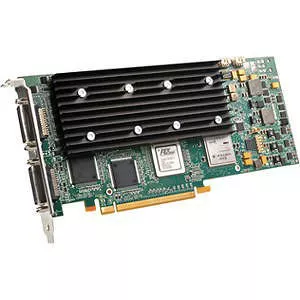

Matrox MURA-MPX42HF Mura MPX-4/2 Capture Card


Highlights

Redefine Your Video Wall Experience

The Matrox Mura MPX-4/2 video wall controller board makes no compromises as it redefines the future of collaborative video walls and wall matrix management. The unique single-slot board design supports two HD inputs and four HD outputs on the same PCI Express x16 Gen2 board-leveraging 64 Gbit/sec duplex data transfer for the flawless display of video input captures without sacrificing frame rate, color or resolution. In addition, the Mura MPX-4/2 output/input board features highly flexible, universal input channel support for both digital and analog video signals (DVI, RGB/VGA, Component, S-Video, & Composite), and captures and displays each signal at full true color (24-bit) image quality. The Mura MPX-4/2 video wall controller card can be combined with other Matrox Mura MPX Series boards to create tailored video wall solutions with support for additional digital and analog video, as well as SDI video, inputs.

Features

  • Single-slot board design with integrated support of 4 output and 2 input channels on the same board
  • Combine multiple Matrox Mura MPX Series boards to drive desired channel requirements-all from a single system
  • PCI Express x16 Gen2 host bus connection leverages 64 Gbit/s full duplex data transfer
  • Maximum output resolution of 2048x1152 (SL-DVI) & 2048x1536 (RGB/VGA) per display
  • Maximum input resolution of 2560x1600 (SL-DVI)1, 1920x1200 (RGB/VGA), 1920x1080i (Component), and NTSC/PAL/SECAM (S-Video, Composite) per input
  • HDCP compliant board captures protected video content from digital cable, satellite set-top boxes, video streamers and Blu-ray™ players and outputs the content to HDCP-enabled displays
  • Designed for control rooms, operation centers and other mission critical environments as well as digital signage, and presentation systems that require stable, reliable video wall technology
  • Pair Mura IPX Series with Mura MPX boards in Matrox-certified platforms for 4K capture and multi-stream H.264 level 5.2 encoding/decoding over standard IP onto video walls up to 56 displays and a more favorable input-to-output ratio
  • Supports Bezel Management as well as Edge Overlap for multi-projector platforms in both landscape and portrait modes
  • Multi-functional board design facilitates video switching, signal conversion, scaling and de-interlacing from a single board, eliminating the need for separate solutions
  • Hardware Framelock: Synchronization of multiple outputs provides tear-free display of captured video sources across multiple displays
