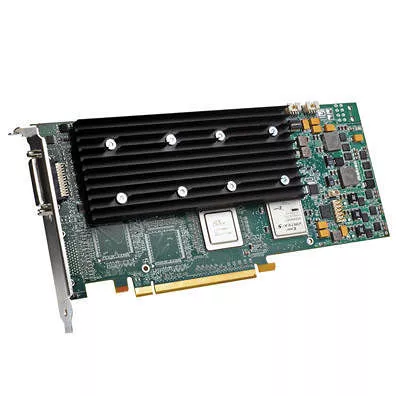

Matrox MURA-MPX40HF Mura MPX-4/0 Capture Card

Redefine Your Video Wall Experience

The Matrox Mura MPX-4/0 video wall controller board makes no compromises as it redefines the future of collaborative video walls and wall matrix management. The unique single-slot board design supports four HD outputs on a PCI Express x16 Gen2 board, leveraging 64 Gbit/sec data transfer. In addition, the Mura MPX-4/0 board is an output-only board that provides a cost-effective solution for video walls requiring a larger number of outputs than inputs. The Mura MPX-4/0 video wall controller card can be combined with other Matrox Mura MPX Series boards to create tailored video wall solutions with support for additional digital and analog video, as well as SDI video, inputs.

Features

• Single-slot board design with support for 4 outputs
• Combine multiple Matrox Mura MPX Series boards to drive desired channel requirements-all from a single system
• PCI Express x16 Gen2 host bus connection leverages 64 Gbit/s data transfer
• Maximum output resolution of 2048x1152 (SL-DVI) & 2048x1536 (RGB/VGA) per display
• HDCP compliant board outputs protected video content from digital cable, satellite set-top boxes, video streamers and Blu-ray™ players to HDCP-enabled displays when used with Matrox Mura MPX-4/4 and/or Matrox Mura MPX-4/2 boards
• Designed for control rooms, operation centers and other mission critical environments as well as digital signage, and presentation systems that require stable, reliable video wall technology
• Pair Mura IPX Series with Mura MPX boards in Matrox-certified platforms for 4K capture and multi-stream H.264 level 5.2 encoding/decoding over standard IP onto video walls up to 56 displays and a more favorable input-to-output ratio
• Supports Bezel Management as well as Edge Overlap for multi-projector platforms in both landscape and portrait modes
• Multi-functional board design facilitates video switching, signal conversion, scaling and de-interlacing from a single board, eliminating the need for separate solutions
• Hardware Framelock: Synchronization of multiple outputs provides tear-free display of captured video sources across multiple displays
