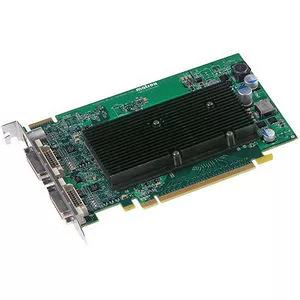

Matrox M9120-E512F M-Series M9120 Graphics Card

MPN: M9120-E512F
MTX-M9120-E512F-00
Highlights
  • Standard Memory: 512 MB
  • Host Interface: PCI Express x16
  • Number of Monitors Supported: 2
  • Product Type: Graphic Card
MTX-M9120-E512F-00
MTX-M9120-E512F-00

Matrox M9120-E512F M-Series M9120 Graphics Card

MPN: M9120-E512F
Highlights
  • Standard Memory: 512 MB
  • Host Interface: PCI Express x16
  • Number of Monitors Supported: 2
  • Product Type: Graphic Card

The Matrox M9120 PCIe x16 ATX graphics card renders pristine image quality with dual monitor support at resolutions up to 1920x1200 (digital), or 2048x1536 (analog) for an exceptional multi-display user experience. Armed with 512MB of graphics memory and advanced desktop management, the M9120 drives business, government, and industrial applications with extraordinary performance on two high-resolution monitors in both independent and stretched desktop modes. It offers multiple operating system support and can be paired with a second Matrox M-Series graphics card if additional outputs are required.

Features

  • High-resolution dual monitor support: Support resolutions up to 1920x1200 (Digital) and 2048x1536 (Analog) per output
  • Native PCI express x16 performance: Maximum bandwidth to ensure best performance
  • 512 MB of memory: For enhanced performance in demanding multi-monitor applications
  • ATX form factor
  • Passive cooling and low power consumption: Fanless design eliminates noise and increases product reliability
  • Stretched and independent desktop modes : Expand your desktop across multiple monitors or set each monitor independent of each other
  • Edge Overlap: Easily and intuitively adjust the number of overlapping pixels to create a seamless, unified image on up to eight edge blending projectors.
  • M-Series multi-card support1 : Add an additional M-Series card into the same system to drive up to 10 displays from two cards
  • Joined graphics card mode2 : Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop
  • Matrox Clone : View a copy of one display on the other displays
  • Wide enterprise flexibility: Unified driver package compatible with other Matrox products
  • Matrox PowerDesk software: Easily configure and manage program windows on multiple monitors
  • Multiple operating system support : Display drivers for Microsoft® Windows® 10 (32-bit, 64-bit; non-WHQL), Windows Server® 2012 (32-bit, 64-bit), Windows 7 (32-bit, 64-bit), Windows Embedded Standard 7 (32-bit), Windows Vista® (32-bit, 64-bit), Windows Server 2008 R1 (32-bit, 64-bit), Windows Server 2008 R2, Windows XP (32-bit, 64-bit), Windows Server 2003 and Linux®3

1. Operating system, hardware and driver compatibility need to be verified for large monitor configuration arrays. Contact Matrox for details.
2. Available only under Microsoft XP and Windows 7 XDDM mode when M9188 is the additional card.
3. M-Series cards support a wide range of Linux operating systems. Refer to the README file in the driver download section for compatible Linux distributions or contact Matrox directly.
