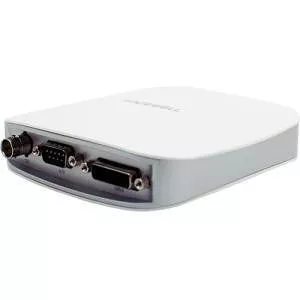

Magewell 20173 XI100XUSB-PRO (PnP) Video Capturing Device

USB 3.0 Interface

XI100XUSB-PRO PnP supports UVC protocol, which enables Plug-and-Play on Windows, Linux and Mac OS X. Its actual data transmission rate is up to 390 MB/S.

Various HD and SD inputs

By XI100XUSB-PRO (PnP), you can capture various kinds of SD and HD video, including SDI (3G/HD/SD) , HD inputs such as DVI, HDMI and analog inputs such as VGA and YPbPr. You can also connect to SD devices to capture S-video, CVBS and so on. You can capture nearly all the inputs by just using one XI100XUSB-PRO capture box.

Professional Video Processing

With FPGA on the board, XI100XUSB-PRO (PnP) has powerful image control ability. The following work are fully done by FPGA causing zero CPU usage, including scaling or clipping the high-quality input, or converting its color space, removing the black edges, automatically detecting the interlaced video source and de-interlacing it.

Endless pursuit of clarity

Teeth may appear in image in fast motion in interlaced videos. XI100XUSB-PRO (PnP) automatically selects the suitable deinterlacing method, which is either line filtering or single field deinterlacing, so that sharpness and clarity of the image are improved.

XI100XUSB-PRO (PnP) offers auto phase-correction function to handle VGA videos. As a result, the words in captured videos have sharper edges and are much more legible.

Accurate Image Color

XI100XUSB-PRO (PnP) uses a new video processing pipeline which is able to process videos with color space being both RGB and YUV. Depending on the setting of the input and output, it minimize the conversion between RGB to avoid color loss in YUV videos as much as possible. Currently, the new pipeline can process four different color spaces including YUV601, YUV709, Studio RGB and Computer RGB.
