MPN: LSI00335

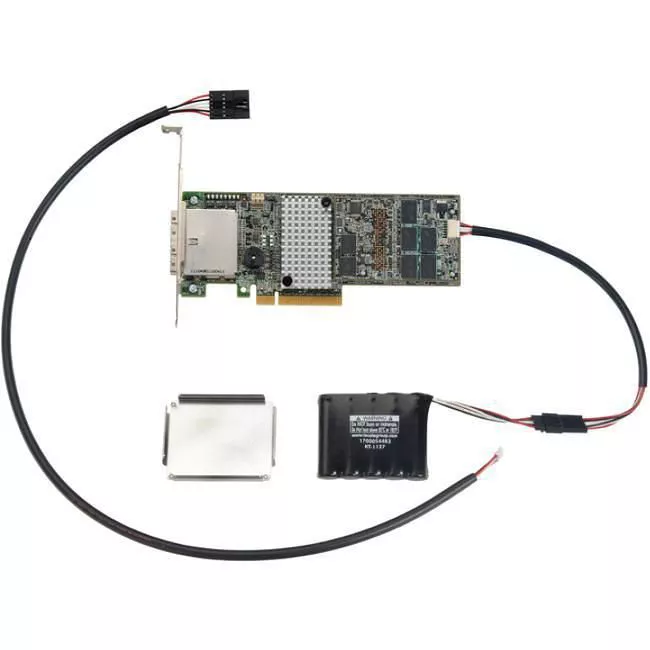

LSI LSI00335 L5-25421-22 / SAS 9286CV-8ECC SGL - 8 External Port 6 Gb/s SAS Controller

Highlights

About

Specifications

Eight-Port 6Gb/s PCI Express® 3.0 SATA+SAS RAID Controller with CacheVault™ Flash Cache Protection and SSD-Optimized Software

Proven interoperability with the latest server platforms based on the PCI Express 3.0 specification

Designed for configuring external storage enclosures with high-performance SAS hard drives, high-capacity SATA hard drives or application-accelerating solid state drives (SSDs)

Specifications

General Information

Manufacturer

LSI Logic Corp

Manufacturer Part Number

LSI00335

Manufacturer Website Address

http://www.lsilogic.com

Brand Name

LSI Logic

Product Line

MegaRAID

Product Model

9286CV-8eCC

Product Name

MegaRAID SAS 9286CV-8eCC

Packaged Quantity

Product Type

SAS Controller

Technical Information

Host Interface

PCI Express 3.0 x8

Controller Type

Serial ATA/600

RAID Supported

Yes

RAID Levels

Data Backup Type

Flash Backed Cache

Interfaces/Ports

Total Number of SAS Ports

Number of SAS Ports (Internal)

Number of SAS Ports (External)

SAS Connector Details

2 x SFF-8088

Physical Characteristics

Height

2.5"

Width

6.6"

Form Factor

Plug-in Card

Card Height

Low-profile

Warranty

Limited Warranty

3 Year
