KRA-VP-734-00
MPN: VP-734

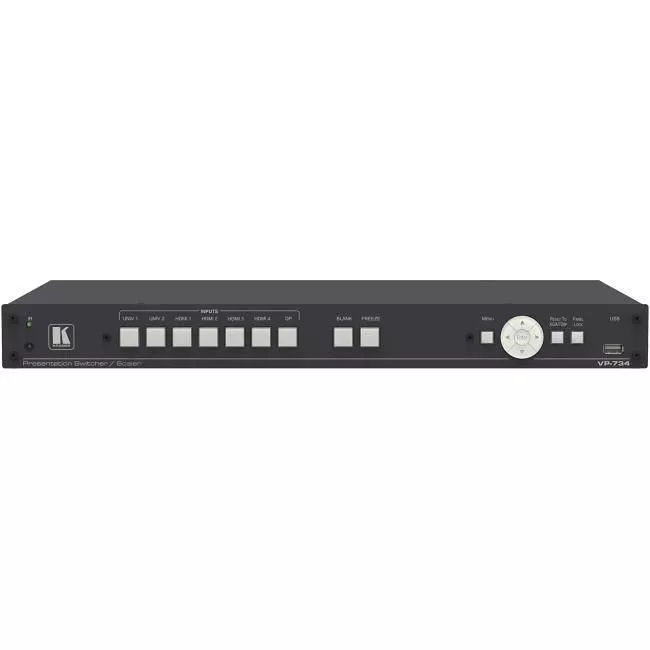

Kramer VP-734 7–input ProScale Presentation Switcher/4K30 UHD Scaler

Highlights

The VP-734 is a 7-input presentation switcher/scaler with four HDMI, one DisplayPort and two user-definable (universal) analog video inputs. It up- and down-scales to selectable graphics or HDTV output resolutions (up to 4K UHD) and provides fast fade-thru-black switching between sources. VP-734 supports analog and embedded audio inputs and outputs and includes rich audio functionality and a stereo loudspeaker output.

  • Kramer's PixPerfect™ Scaling Technology - Kramer's precision pixel mapping and high quality scaling technology.
  • Fast Fade-Thru-Black (FTB™) Switching - For smooth, glitch-free switching. The output signal provides constant sync so the display never glitches.
  • HDTV Compatible. HDCP Compliant.
  • Output Resolutions - With selectable refresh rates: up to 4K UHD.
  • Scaled Video Outputs - HDMI and 15-pin HD computer graphics.
  • Multiple Aspect Ratio Selections.
  • Scales & Zooms.
  • 7 Stereo Analog Audio Inputs - On 3.5mm connectors.
  • Embed/De-embed Audio - On the HDMI and DisplayPort inputs and output.
  • Advanced Noise Reduction Features - Improve video quality by reducing artifacts such as block, chroma and mosquito noise.
  • Powerful Audio Features - With DSP technology including audio equalization, mixing, delay and so on. Audio breakaway and audio-follow-video support, selectable audio delay.
  • Stereo Speaker Output - 10W per channel into 8Ω, on a 4-pin terminal block connector.
  • Built-in Video Proc-Amp - Color, hue, sharpness, contrast, and brightness are set individually for each input.
  • Firmware Upgrade - Ethernet-based, via a user-friendly software upgrade tool.
  • OSD (On-Screen Display) - For user-friendly control and adjustments.
  • Advanced EDID Management.
  • AP for Text Overlay Support.
  • USB Port - For use with flash drive to download custom splash-screens and video logos and for storing/downloading the machine configurations.
  • Non-Volatile Memory - Saves final settings and setup configurations.
  • Flexible Control Options - Front panel buttons, IR remote control, RS-232, Ethernet with Web browser.
  • Worldwide Power Supply - 100-240V AC.
