KRA-VM-4HDT-00
MPN: VM-4HDT

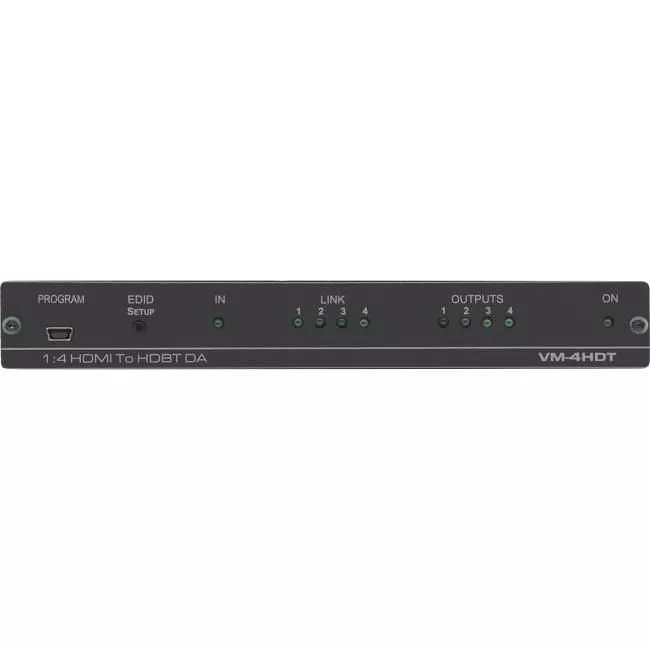

Kramer VM-4HDT 10-80359090 1:4 4K HDMI to HDBaseT Distribution Amplifier

Highlights

The VM-4HDT is a high-quality 1:4 4K UHD HDMI to HDBT distribution amplifier that takes one HDMI input, equalizes and reclocks the signal and distributes it to four identical HDBT outputs. The VM-4HDT distributes signals having resolutions of up to 4K and including WUXGA and 1080p.

  • Maximum Data Rate - 10.2Gbps (3.4Gbps per graphic channel).

  • Max. Resolution - Up to 4K UHD and WUXGA, including 4K @60Hz (4:2:0).

  • HDMI Support - 3D, Deep Color, x.v.Colorâ„¢, 3D.

  • HDCP Compliance - Sources that support HDCP output HDCP protected content.

  • Kramer Equalization & re-Klockingâ„¢ Technology - Rebuilds the digital signal integrity to travel longer distances.

  • I-EDIDProâ„¢ Kramer Intelligent EDID Processingâ„¢ - An intelligent EDID handling and processing algorithm that ensures Plug and Play operation for HDMI systems.

  • Default EDID - For fast and efficient connection.

  • 3D Pass-Through.

  • Range - 70m (230ft).

  • Size - Compact MegaTOOLS® - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B rack adapter.
