KRA-VM-214DT-00
MPN: VM-214DT

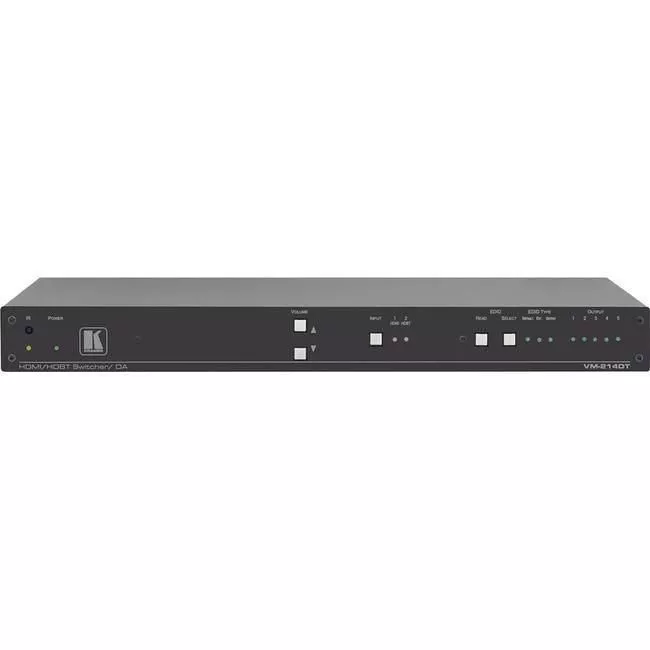

Kramer VM-214DT VM-214DT 2x1:4 4K UHD HDMI HDBaseT Distribution Amplifier

Highlights

The VM-214DT is a 2x1:4 4K@60Hz (4:2:0) HDMI & extended-reach HDBaseT DA for HDMI & HDBaseT signals. It reclocks and equalizes the signal and distributes it to four identical HDBaseT outputs and a looping HDMI output. It supports resolutions up to 4K@60Hz (4:2:0). This product offers the versatility of control options and audio de-embedding.

  • Max. Resolution - 4K@60Hz (4:2:0).
  • Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
  • HDTV Compatible.
  • HDCP Compliant - Works with sources that support HDCP repeater mode.
  • HDMI Support - Deep Color, x.v.Colorâ„¢ and 3D.
  • Automatic Live Input Detection - Based on video clock presence.
  • Automatic Analog Audio Detection & De-embedding.
  • Looping HDMI Output - Allow monitoring and cascading to additional DAs.
  • I-EDIDProâ„¢ Kramer Intelligent EDID Processingâ„¢ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
  • System Range - Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC-UNIKAT cables.
  • Data Equalization and Reclocking.
  • Support for Digital Audio Formats.
  • Lockable EDID and Default EDID - For fast and efficient connection of the unit.
  • Support for EDID Designer.
