MPN: FC-340S
Kramer FC-340S 3G HD−SDI/HD-SDI/SDI Cross Conve-r w/Audio Embedder & DeEmbe
Highlights
About
Specifications

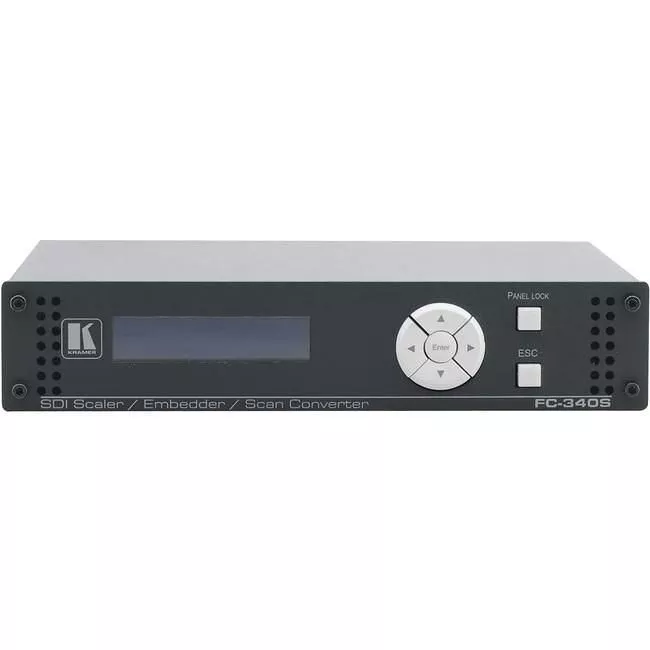

The FC-340S is a broadcast-quality video scaler and audio embedder/de-embedder for digital signals up to 3G HD-SDI. The unit inputs SDI and AES/3id signals and simultaneously outputs two SDI and composite video signals while the audio embedded in the SDI input signal is output to both AES/3id and balanced stereo audio outputs.
- Max. Data Rate - 3Gbps.
- HDTV Compatible.
- Multi-Standard Operation - SDI (SMPTE 259M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M).
- Looping Video Input.
- Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
- Embedding Options - Selects embedded audio or embeds two independent audio groups.
- Flexible Control Options - Front panel with 2-row LCD, Ethernet & RS-232.
APPLICATIONS
- Broadcast and production studios.
- Digital/analog AV authoring.
