KRA-DIP-31-00
MPN: DIP-31

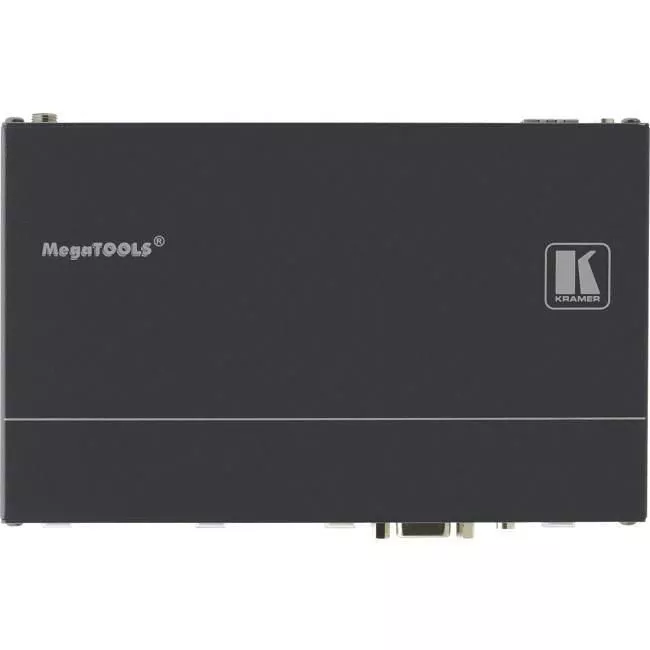

Kramer DIP-31 4K UHD HDMI & Computer Graphics Automatic Video Switcher

Highlights

The DIP-31 is a 4K@60Hz (4:2:0) automatic switcher for HDMI, VGA, Ethernet, data and unbalanced audio signals. It supports various modes of input selection and transmit the signal via HDMI cable to a compatible receiver (for example the VS-62H or a display/projector). The device is a Step-in commander when connected to a matrix switcher that supports Step-in over HDMI such as the VS-62H. It also features RS-232 commands to support monitor/projector on/off.

  • Max. Resolution - 4K@60Hz (4:2:0) and WUXGA.
  • Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
  • HDTV Compatible.
  • HDCP Compliant - With sources that support HDCP repeater mode.
  • HDMI Support - Deep Color, x.v.Colorâ„¢ and 3D.
  • Automatic Live Input Detection - Based on video clock presence.
  • Automatic Input Selection - Based on priority selection or last connected input.
  • Manual Input Selection.
  • Step-in Support.
  • Automatic Analog Audio Detection & Embedding.
  • Convenient Control - Via Kramer Protocol 3000 and embedded Web pages over a LAN.
  • RS-232 Command Support.
  • I-EDIDProâ„¢ Kramer Intelligent EDID Processingâ„¢ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
