About
Specifications
Intel® Server Systems
Reliable solutions made easier. Feature-rich Intel® Server Systems for performance and density supporting the Intel® Xeon® processor E5 family
Reliable solutions made easier. Feature-rich Intel® Server Systems for performance and density supporting the Intel® Xeon® processor E5 family
About
Intel® Server Systems
Reliable solutions made easier. Feature-rich Intel® Server Systems for performance and density supporting the Intel® Xeon® processor E5 family
Reliable solutions made easier. Feature-rich Intel® Server Systems for performance and density supporting the Intel® Xeon® processor E5 family
Specifications
General Information
Manufacturer
Intel Corporation
Manufacturer Part Number
R2208GL4GS
Manufacturer Website Address
http://www.intel.com
Brand Name
Intel
Product Line
Server System
Product Model
R2208GL4GS
Product Name

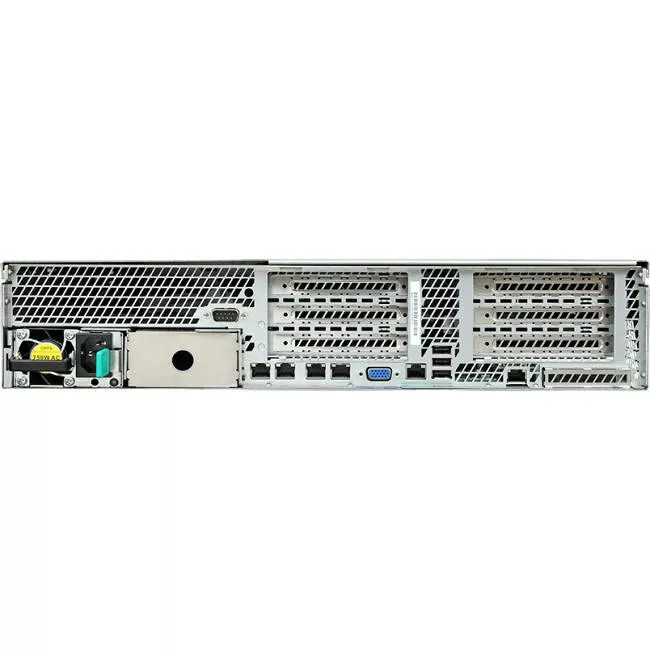

Server System R2208GL4GS
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket R LGA-2011
Processor Supported
Xeon
Processor Technology
Virtualization Technology
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C602
Memory
Maximum Memory Supported
512 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1866/PC3-15000
Number of Total Memory Slots
16
Controllers
RAID Supported
Yes
RAID Levels
0, 1, 1+0
Display & Graphics
Graphics Controller Manufacturer
Intel
Graphics Memory Technology
DDR3 SDRAM
Graphics Memory Accessibility
Shared
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
8
Number of Internal 2.5" Bays
8
Total Number of Expansion Slots
2.0
Number of PCI Express x16 Slots
2
Interfaces/Ports
FireWire/i.LINK
Yes
Total Number of USB Ports
6
Network (RJ-45)
Yes
Number of SATA Interfaces
10
InfiniBand
No
Power Description
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
750 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
2U
Miscellaneous
Package Contents
- Server System R2208GL4GS
- 1 x Intel Server Board S2600GL4
- 8 x 2.5" Hot-swap drive carriers
- 1 x Backplane
- 1 x 750W Redundant Power Supply
- 2 x CPU heat sinks
- 5 x Redundant and hot-swap cooling fans
- 1 x Air duct
- 1 x Standard control panel
- 1 x Dedicated Tray with Front 1 x VGA and 2 x USB, Support for 2 x SSD mounting on Air duct
- 2 x Risers with 3 x8 slots (2 x FHFL, 1 x FHHL on each)
- 1 x Intel RAID C600 Upgrade Key RKSATA8
- 1 x Intel Remote Management Module 4
- 2 SFF8087 to SFF8087 cables
- 1 x Value rail kit
Warranty
Limited Warranty
3 Year
