MPN: R1208WTTGSR

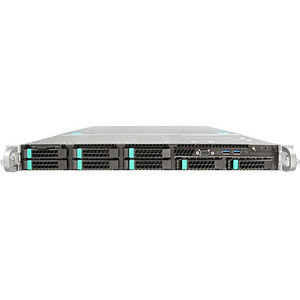

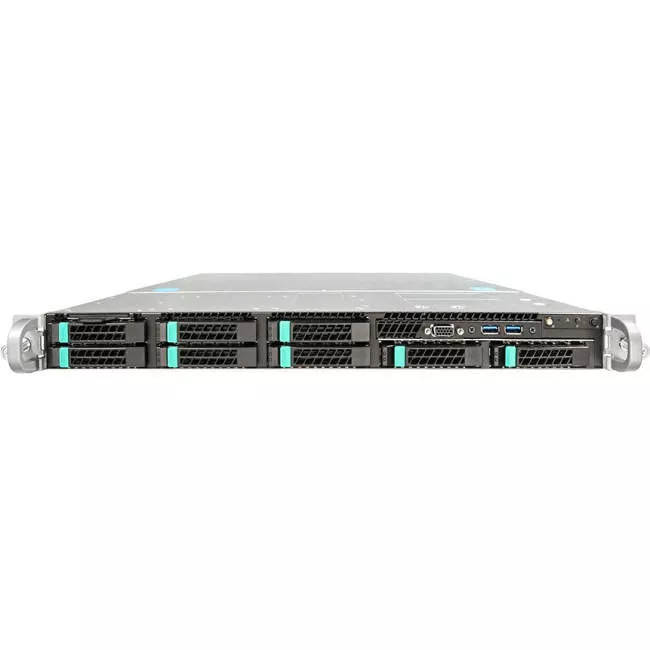

Intel R1208WTTGSR Barebone - 1U Rack-mountable - C612 Chipset - 2 x Socket LGA 2011-v3
Highlights
About
Specifications
Intel® Server Systems
Reliable solutions made easier. Feature-rich Intel® Server Systems for performance and density supporting the Intel® Xeon® processor E5 family
Reliable solutions made easier. Feature-rich Intel® Server Systems for performance and density supporting the Intel® Xeon® processor E5 family
About
Intel® Server Systems
Reliable solutions made easier. Feature-rich Intel® Server Systems for performance and density supporting the Intel® Xeon® processor E5 family
Reliable solutions made easier. Feature-rich Intel® Server Systems for performance and density supporting the Intel® Xeon® processor E5 family
Specifications
General Information
Manufacturer
Intel Corporation
Manufacturer Part Number
R1208WTTGSR
Manufacturer Website Address
http://www.intel.com
Brand Name
Intel
Product Line
Server System
Product Model
R1208WTTGSR
Product Name
Server System R1208WTTGSR
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket LGA 2011-v3
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory Supported
1.50 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Number of Total Memory Slots
24
Controllers
Controller Type
Serial ATA
Display & Graphics
Graphics Controller Manufacturer
Intel
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Internal 2.5" Bays
8
Number of Total Expansion Slots
4
Number of PCI Express x4 Slots
1
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
8
Number of SATA Interfaces
10
Power Description
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
750 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
16.9"
Depth
28"
Miscellaneous
Package Contents
- Server System R1208WTTGSR
- 1 x Intel Server Board S2600WTTR
- 1 x Standard control panel board FXXFPANEL
- 1 x I/O Panel with front 1x VGA and 2x USB
- 1 x ODD bay for CD/DVD drive support
- 8 x 2.5 inch hot-swap drive carriers FXX25HSCAR
- 3 x Backplane FR1304S3HSBP
- 1 x AXXCBL800HRHD Cable
- 1 x AXXCBL900HRHD Cable
- 2 x Processor Heatsinks FXXCA84X106HS
- 2 x Risers 1x16 PCIe* 3.0 FHHL slot on each F1UL16RISER
- 1 x 750W AC power supply FXX750PCRPS
Warranty
Limited Warranty
3 Year
