Highlights:
  • Product Type: Ethernet Switch
  • Ethernet Technology: 100 Gigabit Ethernet
  • Compatible Rack Unit: 1U
  • Media Type Supported: Optical Fiber
Contact sales for pricing

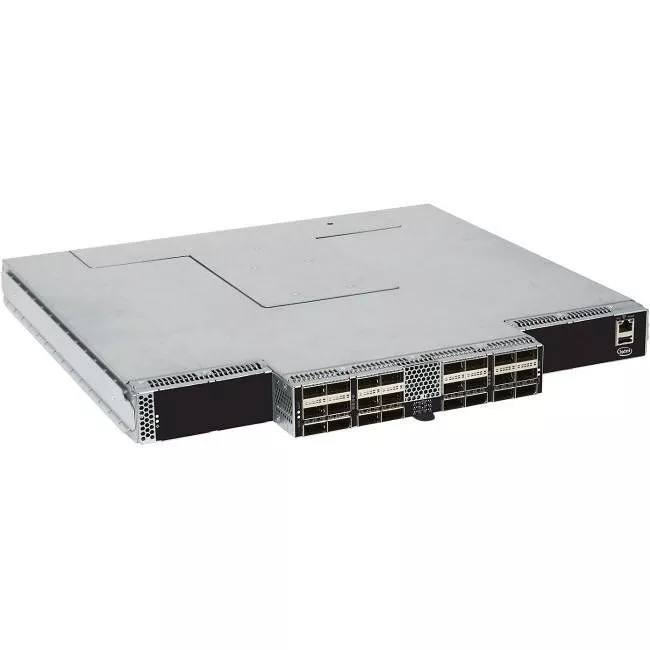

Intel® Omni-Path Fabric Edge Switches,an element of the Intel® Scalable System Framework, are part of an end-to-end product family for HPC fabrics that delivers high performance with breakthrough value-Intel® Omni-Path Architecture (Intel® OPA) builds on proven technologies from Intel® True Scale Architecture, the Cray Aries interconnect, and open source software to provide an evolutionary on-ramp to revolutionary new fabric capabilities.

Higher Performance at Lower Cost

Intel® Omni-Path Edge Switches deliver 100 Gbps port bandwidth with latency that stays low even at extreme scale. Second generation Intel fabric switch silicon, with market leading 48port radix, these switches can lower fabric acquisition costs by as much as 50 percent, while simultaneously reducing space and power requirements. i With these savings, you can potentially achieve higher total cluster performance within the same hardware budget to expand and accelerate your research.

Flexible Fabrics at Every Scale

Intel® Omni-Path Fabric Edge Switches support HPC clusters of all sizes, from entry-level systems to supercomputers with tens of thousands of server nodes. You can use these switches in combination with Intel® Omni-Path Director Class Switches to build low-latency, multi-tier fabrics with an exceptional set of features for high-speed networking.

High Availability

Intel® Omni-Path Fabric Edge Switches provide integrated support for high availability with advanced features such as power, component-level diagnostics and alarming, and out-of-band management. Innovative features take fabric resilience and availability to new heights without sacrificing performance.Packet Integrity Protection (PIP), for example, provides high packet reliability with latency-free error checking and link-level recovery. Dynamic Lane Scaling (DLS) maintains 75 percent of linkbandwidth if a physical lane fails, so HPC workloads can complete gracefully to keep project efforts on track.
General Information
Manufacturer
Intel Corporation
Manufacturer Part Number
100SWE24QF1
Manufacturer Website Address
http://www.intel.com
Brand Name
Intel
Product Line
Omni-Path
Product Series
100
Product Model
100SWE24Q
Product Name
Omni-Path Edge Switch 100 Series 24 Port Managed Forw ard 1 PSU 100SWE24QF1
Product Type
Ethernet Switch
Interfaces/Ports
Uplink Port
No
Modular
No
Stack Port
No
Port/Expansion Slot Details
24 x 100 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported
Optical Fiber
Ethernet Technology
100 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Slots
24
Expansion Slot Type
Switch Fabric
Network & Communication
Layer Supported
2
Management & Protocols
Manageable
Yes
Power Description
Power Source
Power Supply
Redundant Power Supply Supported
No
Physical Characteristics
Compatible Rack Unit
1U
Form Factor
Rack-mountable
Height
17.6"
Width
35"
Depth
29.5"
Weight (Approximate)
13.67 lb
Miscellaneous
Environmentally Friendly
Yes
Environmental Certification
  • REACH
  • RoHS 2
  • EU RoHS
