HPG-1229-00
MPN: 1229

Hauppauge 1229 WinTV-HVR-2255 TV Tuner


Highlights

WinTV-HVR-2255 Overview

The WinTV-HVR-2255 has two tuners for watching one TV program while recording another: with the built-in dual tuners, you can either watch one channel while recording another or you can record two channels at once.

WinTV-HVR-2255 has improved digital TV receptionclick to enlarge

Create your own personal Digital Video Recorder! Record analog cable TV shows to your PC's hard disk with our built-in high quality MPEG-2 hardware encoder. You can also record high definition digital ATSC and clear QAM digital cable TV to disk in the original digital quality. Use the WinTV-Scheduler to schedule the recordings of your favorite analog or digital TV programs. Play the recordings back to your PC screen at any time.

Windows Media Center compatible: Windows Media Center supports two TV tuners. Use the Media Center scheduler to schedule your TV recordings. And WinTV-HVR-2255 has Windows Vista Premium certification. New! Now supports clear QAM with Media Center TV Pack 2008, Windows 7 and Windows 8 ( with Media Center Add on)

Clear QAM TV channels are unencrypted digital TV channels broadcast by your local cable operator. Many cable operators in North America are transmitting the high definition ATSC channels on their cable networks. They also broadcast the basic cable channels in using clear QAM. You can use Windows Media Center from Windows 7 to watch and record these channels.
Note: you need to be using Windows Media Center with TV Pack 2008,Windows 7 or Windows 8 for clear QAM TV compatibility.

ATSC digital TV is the over-the-air HD digital TV for North America. ATSC digital TV typically requires an antenna for reception, and is currently broadcast in 200 cities, with over 1500 TV stations. ATSC broadcasts range in resolution from standard definition up to the high definition 1080i format. The WinTV-HVR can be used to watch and record all ATSC formats.
Note: ATSC digital TV is NOT digital cable TV or digital satellite TV. ATSC is digital over-the-air TV.

ATSC digital TV brings you sharper pictures and enriches your PC's multimedia experience with near CD quality sound. WinTV-HVR's ATSC digital TV tuner adds great features to your TV viewing: high definition TV reception, automatic identification of channel names plus records high-definition digital TV programs to your PC's hard disk in an MPEG-2 format without any loss in quality.

Technically speaking:

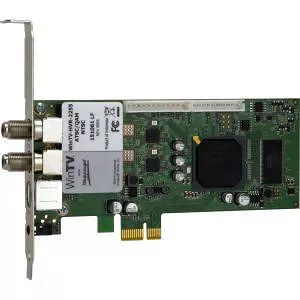

WinTV-HVR-2255 is a PCI Express X1 board based on the NXP 7164 bus interface chip. The WinTV-HVR-2255 contains two tuners with a built-in TV splitter. There is one cable TV or TV antenna connector which is split, providing a video source for both tuners. For ATSC and QAM digital TV, all 18 ATSC formats including 1080i can be watched or recorded to disk as a MPEG-2 Program Stream. The NXP 7164 contains two highly integrated MPEG-1/2 hardware encoders for recording analog cable TV to disk. The playback of the recorded ATSC and QAM digital TV and MPEG-2 encoded analog programs are done through a software MPEG-2 player.

WinTV-HVR-2255 now supports an on-board IR receiver and blaster, which can control up to two external set top boxes. With the on-board remote receiver/blaster, you no longer need the external beanbag remote receiver. The on-board receiver also has a learn mode, so you can use almost any external set top box.
