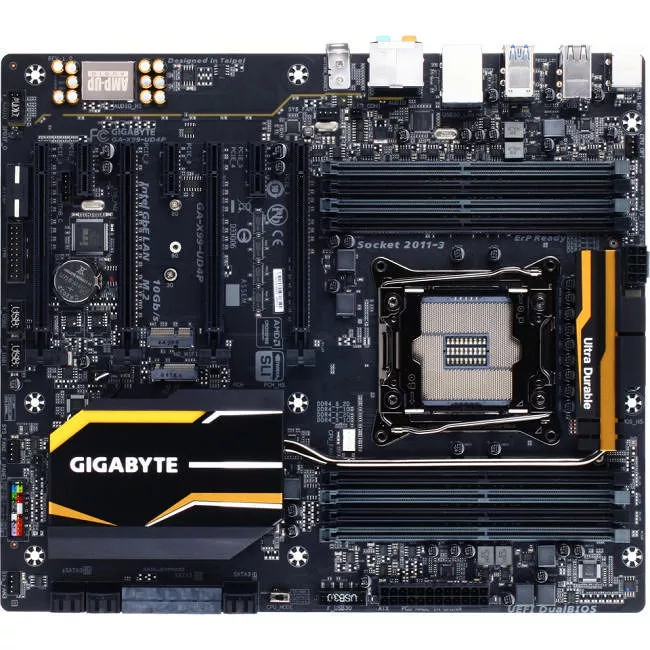

GIGABYTE GA-X99-UD4P Ultra Durable Desktop Motherboard - Intel X99 Chipset - Socket LGA 2011-v3

• Supports New Intel® Core™ i7 Processor Extreme Edition
• Support for DDR4 XMP up to 3333MHz
• Genuine All Digital Power Design with IR Digital PWM & IR PowIRstage® ICs
• 4-Way Graphics with Premium PCIe Lane
• Dual M.2 Technology for SSD Drive and WIFI card
• Realtek ALC1150 115dB SNR HD audio with built-in Rear Audio Amplifier
• Independent Right and Left Audio Channel PCB Layers
• High end Nichicon audio capacitors
• LED lighting for the audio guard light path and the back panel LED
• All Stainless Steel connectors on rear panel
• SATA Express support for up to 10 Gb/s data transfer
• GIGABYTE UEFI DualBIOS™ with Q-Flash Plus USB port
• Long lifespan Durable Black™ Solid caps
• APP Center including EasyTune™ and Cloud Station™ utilities
• Thunderbolt™ Ready
• Safer design around screw mounting holes

Support for DDR4 XMP up to 3333MHz

DDR4 memory modules are available at a stock frequency of 2133MHz, but memory vendors encode XMP profiles which can automatically modify the frequency and timings of the supported memory modules to work in par with your CPU. With the X99 Champion Series, GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 3333MHz.

What is XMP?

The synchronization of the memory modules with the CPU is crucial for good performance of your system. DDR4 memory modules are available at a stock frequency of 2133MHz, but as frequency tweaking requires a considerable amount of effort and knowledge, memory vendors encode XMP profiles which can automatically modify the timings of the supported memory modules to work with your CPU and to achieve increased performance.

Genuine All Digital Power Design

GIGABYTE X99 series motherboards use an all digital CPU power design from International Rectifier® which includes both 4th Generation digital PWM Controllers and industry-leading 3rd Generation PowIRstage® controllers. These 100% digital controllers offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from their new Intel® Core™ i7 Extreme Edition CPUs.

IR Digital PWM & IR PowIRstage® ICs

This new generation of IR® digital power controllers and PowIRstage® ICs feature Isense technology, which provide more precise current sensing accuracy. This helps evenly distribute the thermal loading between the PowerIRstage® ICs, preventing the overheating of each individual PowerIRstage®, resulting in longer lifespan and better reliability.

Single Package Design

IR® has leveraged it's world class packaging technology developed for the DirectFET®, improving the thermal capability and layout of the PowIRstage® significantly over that of other MCM packages.

Single Package Design VS. Multi-Chip Design

Other MOSFET layout implementations use a multi-chip, side-by-side arrangement of the high and low side MOSFETs and driver ICs, taking up significant board real estate and creating more electrical leakage.
