Highlights:
- Form Factor: Mid-Tower
- Processor: 1x Intel Xeon processor W family
- Drive Bays: 4x 3.5" Internal
- Supports up to 2x Double-Wide cards

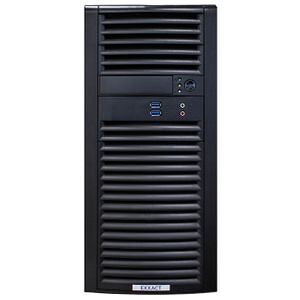

The Valence VWS-1690441-GAU is a mid-tower supporting 1x Intel Xeon W family processor, a maximum of 512 GB DDR4 memory, and up to 2x NVIDIA Quadro GPUs.
Optimized Gaussian System Highlights
- Optimized Gaussian application
- Designed to Meet the Requirements for Atomistic Molecular Dynamics Simulations
- Preinstalled Computing Solutions, Designed in Collaboration and Certified by Software Developers
- Fully Customizable to Meet Your Budget
- Preinstalled, Tested and Optimized Gaussian Software
- 3 Year Warranty
- For Maximum Performance
- CentOS 6 / CentOS 7
NVIDIA Quadro GPU Options
| Model | Standard Memory | Memory Bandwidth (GB/s) | CUDA Cores | Tensor Cores | Single Precision (TFLOPS) | Double Precision (TFLOPS) | Power (W) | Explore | |
|---|---|---|---|---|---|---|---|---|---|
 | Quadro GV100 | 32 GB HBM2 | 870 | 5120 | 640 | 14.8 | 7.9 | 250 | Specs |
 | Quadro GP100 | 16 GB HBM2 | 717 | 3584 | - | 10.3 | 5.2 | 235 | Specs |
 | Quadro RTX 8000 | 48 GB GDDR6 | 672 | 4608 | 576 | 16.3 | 0.51 | 295 | Specs |
 | Quadro RTX 8000 (Passive) | 48 GB GDDR6 | 624 | 4608 | 576 | 14.9 | 0.47 | 250 | Specs |
 | Quadro RTX 6000 | 24 GB GDDR6 | 624 | 4608 | 576 | 16.3 | 0.51 | 295 | Specs |
 | Quadro RTX 6000 (Passive) | 24 GB GDDR6 | 624 | 4608 | 576 | 14.9 | 0.47 | 250 | Specs |
 | Quadro RTX 5000 | 16 GB GDDR6 | 870 | 3072 | 384 | 11.2 | 0.35 | 200 | Specs |
 | Quadro RTX 4000 | 8 GB GDDR6 | 416 | 2304 | 288 | 7.1 | 0.22 | 160 | Specs |
 | Quadro P6000 | 24 GB GDDR5X | 432 | 3840 | - | 12 | 0.39 | 250 | Specs |
 | Quadro P5000 | 16 GB GDDR5 | 288 | 2560 | - | 8.9 | 0.28 | 180 | Specs |
* Passive GPUs only for select systems that support passive cooling.
Processor & Chipset
Number of Processors Supported
1
Processor Manufacturer
Intel
Processor Socket
LGA 2066
Processor Type
- Xeon
Processor Supported
- W-21XX
Chipset Manufacturer
Intel
Chipset Model
C422
Memory
Maximum Memory
512 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
8
Controllers
SATA3
- Via C422 chipset
- RAID 0, 1, 5, 10
Audio
- ALC 1220 7.1 HD Audio
Network & Communication
Ethernet Technology
- 1000BASE-T
I/O Expansions
PCI Express
- 3x PCI-E 3.0 x16 slots (x8/x16/x16)
- 1x PCI-E 3.0 x4 slot
NVMe
- 2x M.2 PCI-E 3.0 x4 (22110/2280, RAID 0, 1 support))
- 2x U.2 PCIe 3.0 x4
Drive Bays
Fixed
- 4x 3.5" drive bays
Peripheral
2x 5.25" drive bays
Interfaces/Ports
Number of USB Ports
- 6x USB 3.0 (4x rear, 2x header)
- 6x USB 2.0 (2x rear, 4x header)
- 2x USB 3.1 (Type A)
Number of SATA Interfaces
- 6x SATA3 Ports
LAN
- 2x RJ45 1000BASE-T Ethernet LAN Ports
Audio
- 7.1 HD Jacks
Serial Port/Header
- 1x serial port (header)
Power Description
Number of Power Supplies
1
Redundant Power Supplies
No
Maximum Power Supply Wattage
900 W
Certification
80 Plus Gold
Physical Characteristics
Color
Black
Form Factor
Mid-Tower
Height
16.7"
Width
7.6"
Depth
20.68"
