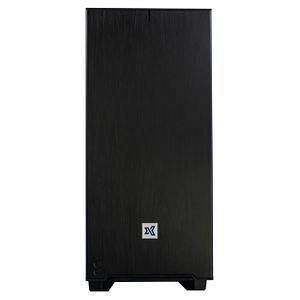

The Valence VWS-107456375 is a mid-tower supporting 1x Intel Xeon Scalable family or W-32XX processor and 12x DDR4 memory slots.
About
The Valence VWS-107456375 is a mid-tower supporting 1x Intel Xeon Scalable family or W-32XX processor and 12x DDR4 memory slots.
Specifications
Processor & Chipset
Number of Processors Supported
1
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
- W-32XX
- Bronze 31XX
- Bronze 32XX
- Silver 41XX
- Silver 42XX
- Gold 51XX
- Gold 52XX
- Gold 61XX
- Gold 62XX
- Platinum 81XX
- Platinum 82XX
Thermal Design Power (TDP)
Up to 205W
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory
3 TB
Memory Technology
- DDR4 SDRAM
- DDR4 NVDIMM (DCPMM, with Xeon Scalable Processor)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
12
Controllers
SATA3
- Via C621 chipset
- RAID 0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500 BMC
Network & Communication
Ethernet Technology
- 1000BASE-T
- 10GBASE-T
I/O Expansions
PCI Express
- 4x PCI-E 3.0 x16 slots
- 3x PCI-E 3.0 x8 (in x16 slot)
Drive Bays
Fixed
- 6x 3.5"/2.5" internal
- 2x 2.5" internal
Peripheral
1x 5.25" drive bays
Interfaces/Ports
Total Number of USB Ports
12
Number of USB 3.1 Ports
- 6x USB 3.1 Gen1 Ports (4x rear, 2x header)
- 4x USB 3.1 Gen2 Ports (2x rear Type A + 2x rear Type C)
Number of USB 2.0 Ports
2x (2x headers)
Number of SATA Interfaces
- 8x SATA3 Ports
LAN
- 1x RJ45 1000BASE-T Ethernet LAN Ports
- 1x RJ45 10GBASE-T Ethernet LAN Ports
- 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Onboard Audio
7.1 HD Audio w/ optical S/PDIF
Serial Port / Header
2x COM ports (header)
TPM
1x TPM Header
Power Description
Number of Power Supplies
1
Redundant Power Supplies
No
Physical Characteristics
Color
Black
Form Factor
Mid-Tower
Height
25.24"
Width
9.45"
Depth
21.54"
