Highlights:
  • Form Factor: Mini PC
  • Processor: 1x Intel Core i3/i5/i7, Celeron, or Pentium
  • Drive Bays: 2x 3.5" Internal, 1x 5.25" External
  • Supports 1x Double-Wide card
Contact sales for pricing

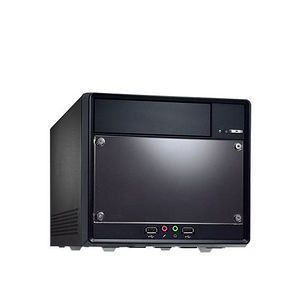

The Valence VWF-290580 is a Mini PC featuring 1x Intel Core i3/i5/i7, Celeron, or Pentium processor and a maximum 16 GB DDR3 memory.

Processor & Chipset
Number of Processors Supported
1
Processor Socket
LGA 1150
Processor Supported
  • Core i7
  • Core i5
  • Core i3
  • Pentium
  • Celeron
Thermal Design Power (TDP)
N/A
Chipset Manufacturer
Intel
Chipset Model
H81 Express
Memory
Maximum Memory
16 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1600/PC4-12800
Number of Total Memory Slots
2
Controllers
Controller Type
  • SATA3
  • SATA2
Display & Graphics
Graphics Controller Manufacturer
Intel
Graphics Controller Model
HD Graphics
Network & Communication
Ethernet Technology
  • 1000BASE-T
I/O Expansions
PCI Express
  • 1x PCI-E 3.0 x16 slot
  • 1x PCI-E 3.0 x1 (in x4 slot)
  • 1x Mini-PCI-E (Full) socket
  • 1x Mini-PCI-E (Half) socket
Drive Bays
External
  • 1x 5.25" ODD bays
Internal
  • 2x 3.5" drive bays
Interfaces/Ports
Total Number of USB Ports
10
Number of USB 3.0 Ports
2 (rear)
Number of USB 2.0 Ports
8 (2x front, 6x rear)
Number of SATA Interfaces
  • 2x SATA3
  • 1x SATA2
LAN
  • 1x RJ45 1000BASE-T Ethernet LAN Ports
Onboard Video
  • 1x HDMI
  • 1x DVI
Onboard Audio
  • Realtek ALC662
  • 5.1 Channel high definition audio
Power Description
Number of Power Supplies
1
Redundant Power Supplies
No
Maximum Power Supply Wattage
300 W
Certification
80 Plus Bronze
Physical Characteristics
Color
Black
Form Factor
Mini PC
Height
7.48"
Width
8.46"
Length
12.80"
