Highlights:
  • Form Factor: Mini-PC
  • Processor Supported: 1x Intel Core i7-5775R
  • Drive Bays: 1x 2.5" Internal
  • 2x DisplayPort, 1x DVI-D
Contact sales for pricing

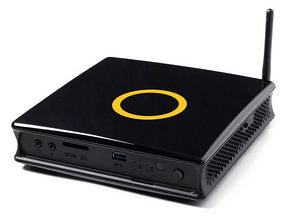

The Valence VWF-264605 is a Mini-PC featuring 1x Intel Core i7-5775R processor and a maximum of 16 GB DDR4 memory.

Processor & Chipset
Number of Processors Supported
1
Processor Socket
FCBGA1364
Processor Type
  • Core
Processor Model
  • i7-5775R
Thermal Design Power (TDP)
N/A
Chipset Manufacturer
Intel
Chipset Model
N/A
Memory
Maximum Memory
16 GB
Memory Technology
DDR3L SDRAM
Memory Standard
DDR3L-1600/PC3L-12800
Number of Total Memory Slots
2
Controllers
SATA3
  • Via Intel chipset
Display & Graphics
Graphics Controller Manufacturer
Intel
Graphics Controller Model
Iris Pro Graphics 6200
Network & Communication
Ethernet Technology
  • 1000BASE-T
Drive Slots
Internal
  • 1x 2.5" drive slot
  • 1x mSATA slot
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
4 (1x front, 1x rear, 1x top)
Number of SATA Interfaces
1
Number of mSATA Interfaces
1
4-in-1 card reader
  • SD
  • SDHC
  • SDXC
  • MMC
LAN/Wireless
  • 2x RJ45 1000BASE-T Ethernet LAN Ports
  • 802.11ac WiFi
  • Bluetooth 4.0
Onboard Video
  • 2x DisplayPort 1.2
  • 1x DVI-D/li>
Audio
  • Loss-less Bitstream (via DVI-to-HDMI adapter)
  • Digital S/PDIF (optical)
  • Analog stereo
Power Description
Number of Power Supplies
1
Redundant Power Supplies
No
Maximum Power Supply Wattage
120 W DC
Physical Characteristics
Color
Black
Form Factor
Mini-PC
Height
3.27"
Width
12.80"
Length
12.99"
