Highlights:
  • Form Factor: Mini PC
  • Processor Supported: 1x Intel Core i3/i5/i7, Celeron, or Pentium
  • Drive Bays: 2x 2.5" Internal, 1x Slim Slot External
  • Supports 1x Double-Wide card
Contact sales for pricing

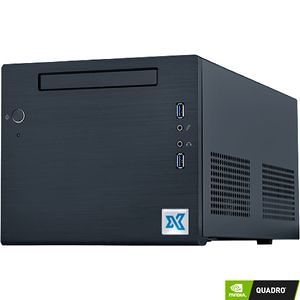

The Valence VWF-264603-NQR is an Ultra Compact PC. The 6th generation Intel® Core™ i3 / i5 / i7 Skylake processor does all tedious computing with ease. Support for a full double-wide NVIDIA Quadro RTX GPU ensures to give excellent graphical output. High speed data sharing is provided by its dual Gigabit Ethernet along with various ports enable you to have seamless connectivity and expansion feature. You can maximize on your productivity and fun with its memory capacity of up to 32GB DDR4 RAM.

NVIDIA Quadro RTX GPU Options

ModelStandard MemoryMemory Bandwidth (GB/s)CUDA CoresTensor CoresSingle Precision (TFLOPS)Double Precision (TFLOPS)Power (W)Explore
Quadro RTX 800048 GB GDDR6672460857616.30.51295Specs
Quadro RTX 8000 (Passive)48 GB GDDR6624460857614.90.47250Specs
Quadro RTX 600024 GB GDDR6624460857616.30.51295Specs
Quadro RTX 6000 (Passive)24 GB GDDR6624460857614.90.47250Specs
Quadro RTX 500016 GB GDDR6870307238411.20.35200Specs
Quadro RTX 40008 GB GDDR641623042887.10.22160Specs

* Passive GPUs only for select systems that support passive cooling.

Processor & Chipset
Number of Processors Supported
1
Processor Socket
LGA 1151
Processor Type
  • Core
  • Celeron
  • Pentium
Processor Supported
  • Core i3
  • Core i5
  • Core i7
  • Celeron
  • Pentium
Thermal Design Power (TDP)
91 W
Chipset Manufacturer
Intel
Chipset Model
Q170 Express
Memory
Maximum Memory
32 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
2
Controllers
SATA3
  • Via C620 chipset
  • RAID 0, 1, 5, 10
  • Intel Rapid Storage Technology
Display & Graphics
Graphics Controller Manufacturer
Intel
Graphics Controller Model
HD Graphics
Network & Communication
Ethernet Technology
  • 1000BASE-T
I/O Expansions
PCI Express
  • 1x PCI-E 3.0 x16 slots (Supports 1x double-wide card)
  • Mini-PCI-E with mSATA support, M.2 PCI-E 3.0 with SATA support, M Key
M.2 Form Factor
  • 2242
  • 2280
Drive Bays
External
  • 1x Slim optical drive bay
Internal
  • 1x 3.5" drive bay
  • 2x 2.5" drive bays
Interfaces/Ports
Total Number of USB Ports
11
Number of USB 2.0 Ports
4 (4x header, 1x Type A)
Number of USB 3.0 Ports
4 (2x front, 4x rear)
Number of SATA Interfaces
5
LAN
  • 2x RJ45 1000BASE-T Ethernet LAN Ports
Onboard Video
  • 1x HDMI
  • 1x DisplayPort
  • 1x DVI-I
Onboard Audio
  • ALC 888S HD Audio
Serial Port/Header
  • 2x COM Ports (rear)
Power Description
Number of Power Supplies
1
Redundant Power Supplies
No
Maximum Power Supply Wattage
600 W
Certification
80 Plus Bronze
Physical Characteristics
Color
Black
Form Factor
Mini PC
Height
7.48"
Width
8.74"
Depth
13.82"
