Highlights:
  • Form Factor: 4U Rackmountable / Tower
  • Processor: 2x Intel Xeon Scalable family
  • Drive Bays: 4x 2.5"/3.5" fixed
  • Supports up to 3x Double-Wide cards
Contact sales for pricing

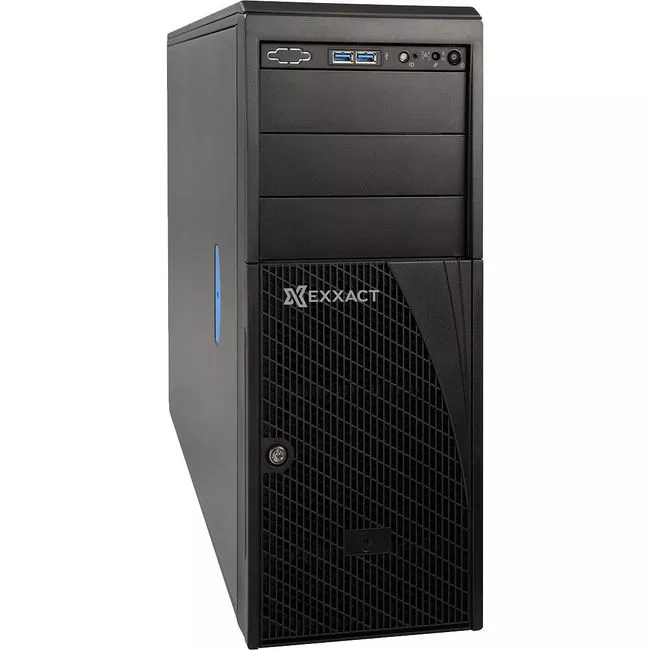

The TensorEX TWS-672492 is a 4U rack mountable tower supporting 2x Intel Xeon processor Scalable family and a maximum of 1 TB DDR4 memory.

Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 62XX
  • Platinum 81XX
  • Platinum 82XX
Number of UPI Links
2
Thermal Design Power (TDP)
Up to 205W
Chipset Manufacturer
Intel
Chipset Model
C624
Memory
Maximum Memory
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
16
Controllers
SATA3
  • Via C602J chipset
  • RAID 0, 1
SATA3
  • Via C624 chipset
  • SW RAID 0, 1, 10 (5 optional)
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
  • 10GBASE-T
I/O Expansions
PCI Express
  • 3x PCI-E 3.0 x16 slots
  • 3x PCI-E 3.0 x8 slots
Drive Bays
Fixed
4x 3.5" drive bays
Peripheral
3x 5.25" drive bays
Interfaces/Ports
Total Number of USB Ports
7
Number of USB 3.0 Ports
5 (2x front, 2x rear, 1x Type A)
Number of USB 2.0 Ports
2 (rear)
Number of SATA Interfaces
  • 12x SATA3 Ports
Number of NVMe Interfaces
  • 4x OCuLink Ports
Number of M.2 Slots
  • 2x M.2 (SATA / PCIe)
LAN
  • 2x RJ45 10GBASE-T Ethernet LAN Ports
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Serial Port / Header
1x internal DH-10 Serial Port A connector
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
750 W or 1600 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable / Tower
Rack Height
4U
Height
17.24"
Width
6.81"
Depth
24.9"
