MPN: TWS-192623777

Exxact TensorEX Rackmount Workstation - 2x Intel Xeon 6500P/6700P/6700E Series processor - TWS-192623777

Highlights

About

Specifications

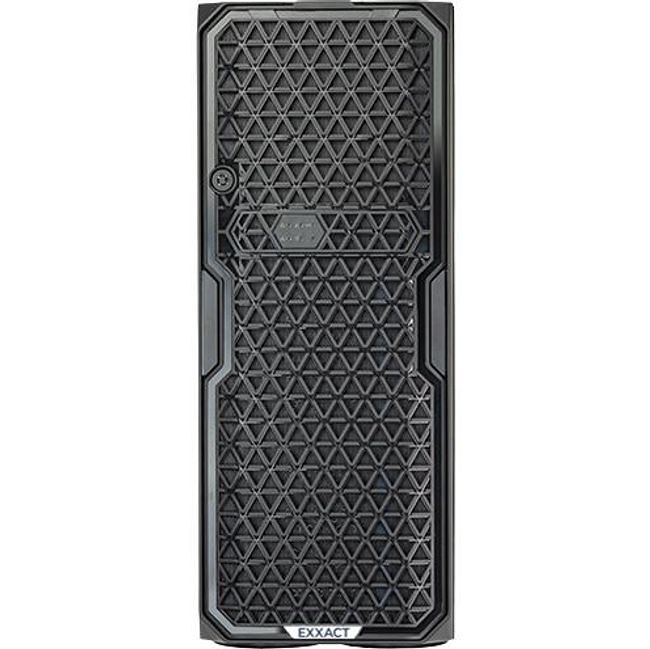

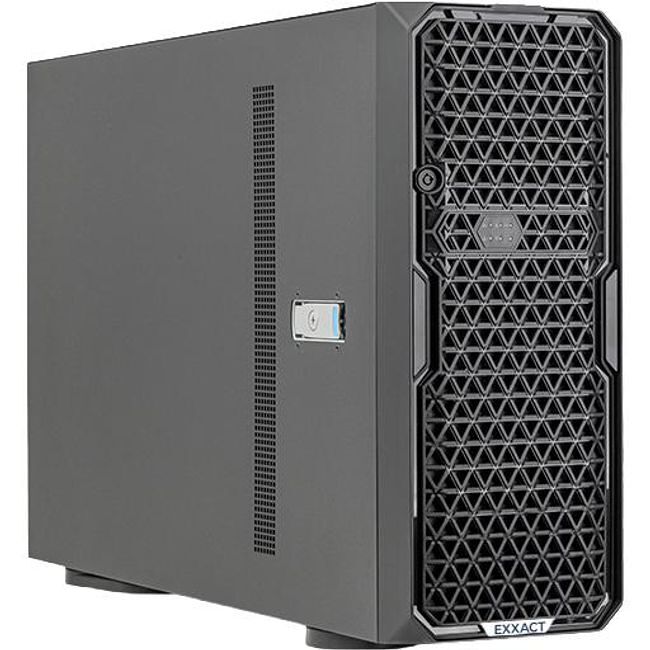

The TensorEX TWS-192623777 is a 4U Rackmount workstation supporting 2x Intel Xeon 6500P/6700P/6700E Series processor, 16x DDR5 memory slots, and up to 3x Double-Wide cards

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

Socket E2 LGA-4710

Processor Type

Xeon 6

Processor Supported

6500P-Series
6700E-Series
6700P-Series

Thermal Design Power (TDP)

350W

Chipset Manufacturer

Intel

Chipset Model

SoC

Memory

Maximum Memory

4 TB

Memory Technology

DDR5 SDRAM

Memory Standard

DDR5-6400/PC5-51200
DDR5-8000/PC5-64000

Number of Total Memory Slots

Controllers

SATA3

Via ASM1164 SATA Controller
Supports Intel Rapid Storage
SATA RAID 0, 1, 5, 10

NVMe

Via SoC
Optional VROC Key header.

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2600

Network & Communication

Ethernet Technology

10GBASE-T (10GbE)

I/O Expansions

PCI Express

5x PCI-E 5.0 / CXL2.0 x16 slots (Supports 3x Double-Wide cards)
1x PCI-E 5.0 / CXL2.0 x8 slot
2x PCI-E 5.0 x2 M.2 slot (2280/22110)

Drive Bays

Hot-Swap

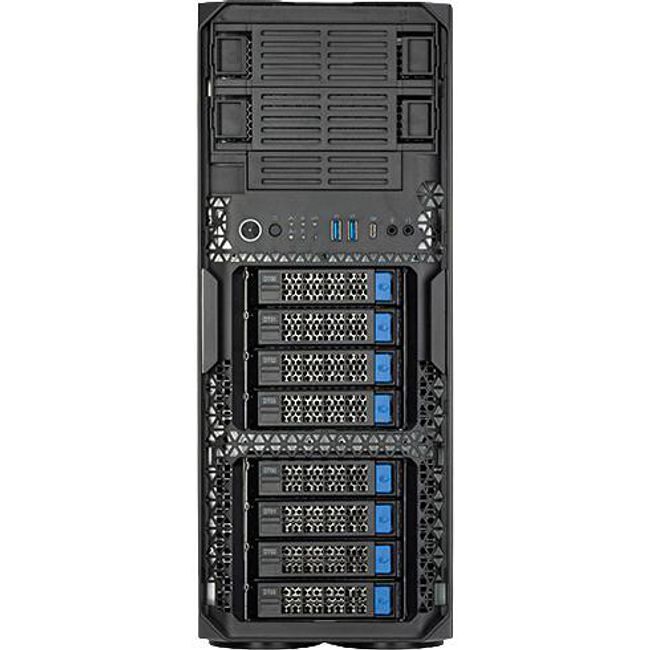

8x 3.5"/2.5" Hot-Swap
Supports SATA

Peripheral

External

2x 5.2" Fixed
1x 3.5" Fixed

Interfaces/Ports

USB Ports

2x USB 3.2 Gen 1 ports (Front, Type-A)
2x USB 3.2 Gen 1 ports (Rear, Type-A)

Number of SATA Interfaces

8x SATA3 Ports

Number of NVMe Interfaces

2x U.2 (Via PCI-E 5.0 MCIO 8i port)
2x M.2

LAN

1x RJ45 10GBASE-T (10GbE) Ethernet LAN Ports

Onboard Video

1x VGA Connector

Serial Port / Header

1x COM Header

TPM

1x SPI TPM Header

VROC

1x VROC Header

Power Description

Number of Power Supplies

Redundant Power Supplies

Physical Characteristics

Color

Black

Form Factor

4U Rackmount Workstation

Height

17.83"

Width

6.89"

Depth

26.89"
