MPN: TWS-182903768

Exxact TensorEX Rackmount Workstation - 1x AMD Ryzen Threadripper Pro 9000/7000 WX-Series - TWS-182903768

Highlights

About

Specifications

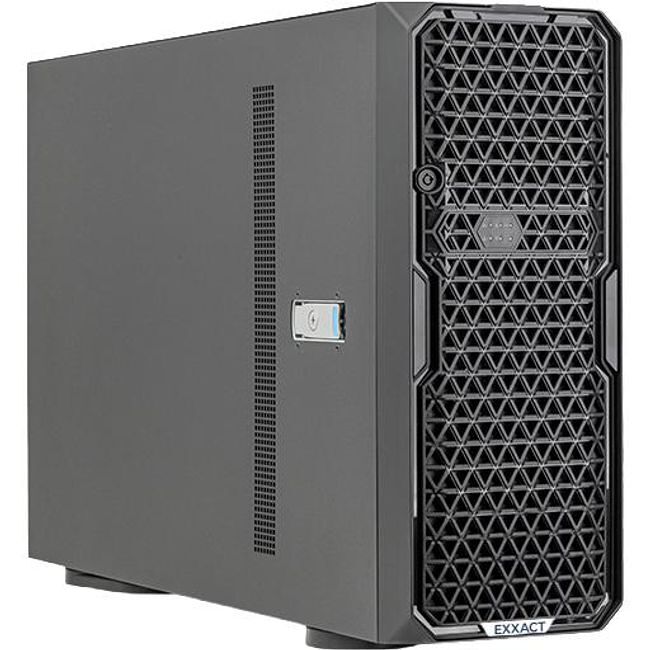

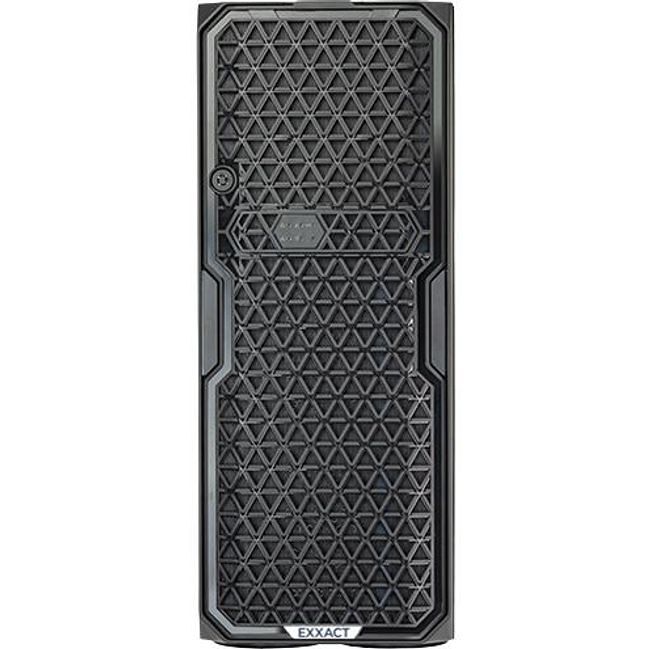

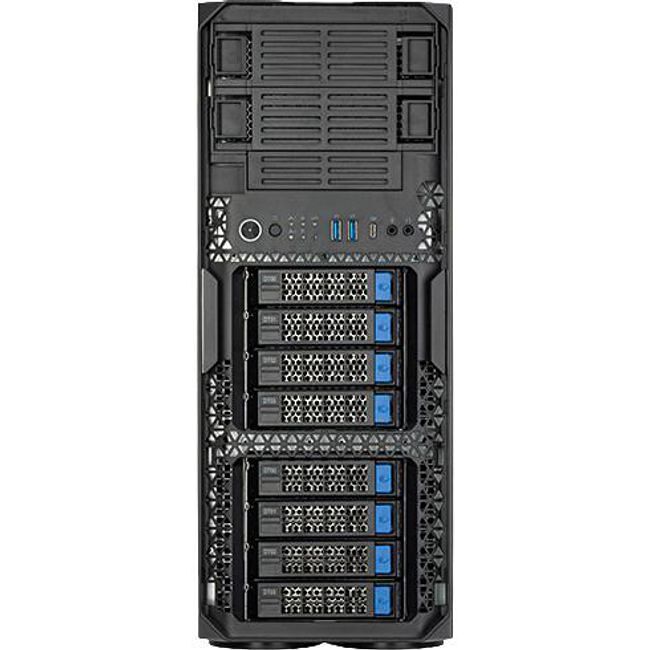

The TensorEX TWS-182903768 is a 4U Rackmount workstation supporting 1x AMD Ryzen Threadripper Pro 9000/7000 WX-Series processor, 8x DDR5 memory slots, and up to 4x Double-Wide cards

Specifications

Processor & Chipset

Number of Processors Supported

Processor Manufacturer

AMD

Processor Socket

Socket sTR5

Processor Type

Ryzen

Processor Supported

Threadripper Pro 9000 WX-Series
Threadripper Pro 7000 WX-Series

Chipset Manufacturer

AMD

Chipset Model

WRX90

Memory

Memory Technology

DDR5 SDRAM

Memory Standard

DDR5-5200/PC5-41600

Number of Total Memory Slots

Controllers

SATA3

Via WRX90 chipset
RAID 0, 1, 5, 10

NVMe

Via CPU & WRX90 Chipset
RAID 0, 1, 5, 10

Network & Communication

Ethernet Technology

10GBASE-T (10GbE)

I/O Expansions

PCI Express

6x PCI-E 5.0 x16 slots (Supports 4x double-wide cards)
1x PCI-E 5.0 x8 (in x16 slot)
2x PCI-E 5.0 x4 M.2 slots (Up to 22110)
2x PCI-E 5.0 x4 M.2 slots (Up to 2280)

Drive Bays

Fixed

4x 3.5"/2.5" SATA Hot-Swap
Optional 2x 2.5" U.2 Hot-Swap

Interfaces/Ports

Number of USB Ports

1x USB 3.2 Gen 2x2 (Front, Type C)
2x USB 3.0 (Front, Type A)
2x USB 4.0 (rear, Type C)
6x USB 3.2 Gen 2 (rear, Type A)
1x USB 2.0 (rear, Type A)

Number of SATA Interfaces

NVMe

2x PCI-E 5.0 x4 M.2 slots (Up to 22110)
2x PCI-E 4.0 x4 M.2 slot (Up to 2280)
Optional 2x U.2 via SlimSAS slots

LAN

1x RJ45 10GBASE-T Ethernet LAN Ports 10GbE)
1x RJ45 Management LAN Port (1GbE)

Audio

HD Audio

Power Description

Number of Power Supplies

Redundant Power Supplies

Physical Characteristics

Color

Black

Form Factor

4U Rackmount Workstation

Height

17.83"

Width

6.89"

Depth

26.89"

Noise Level Without Load

43.2 dB (Default), 51.5 dB (Performance)

Maximum Noise Level

61.7 dB (Default), 72.8 dB (Performance)
