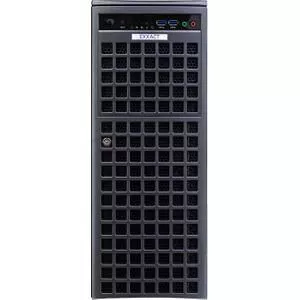

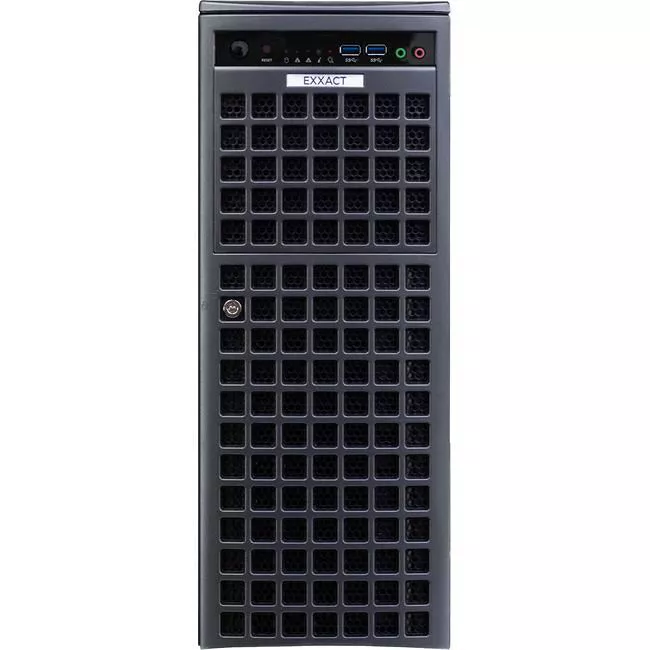

The TensorEX TWS-174128725 is a 4U rack mountable tower supporting 1x Intel Xeon Scalable family or W-32XX processor and 12x DDR4 memory slots.
About
The TensorEX TWS-174128725 is a 4U rack mountable tower supporting 1x Intel Xeon Scalable family or W-32XX processor and 12x DDR4 memory slots.
Specifications
Processor & Chipset
Number of Processors Supported
1
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
- W-32XX
- Bronze 31XX
- Bronze 32XX
- Silver 41XX
- Silver 42XX
- Gold 51XX
- Gold 52XX
- Gold 61XX
- Gold 62XX
- Platinum 81XX
- Platinum 82XX
Number of UPI Links
2
Thermal Design Power (TDP)
Up to 205W
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory
1.5 TB
Memory Technology
- DDR4 SDRAM
- DDR4 NVDIMM (DCPMM, with Xeon Scalable Processor)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
12
Controllers
SATA3
- Via C621 chipset
- RAID 0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500 BMC
Network & Communication
Ethernet Technology
- 1000BASE-T
- 10GBASE-T
I/O Expansions
PCI Express
- 4x PCI-E 3.0 x16 slots
- 3x PCI-E 3.0 x8 (in x16 slot)
Drive Bays
Hot-Swap
8x 3.5" drive bays
Peripheral
3x 5.25" drive bays
Interfaces/Ports
Total Number of USB Ports
12
Number of USB 3.1 Ports
- 6x USB 3.1 Gen1 Ports (4x rear, 2x header)
- 4x USB 3.1 Gen2 Ports (1x rear Type A + 1x rear Type C)
Number of USB 2.0 Ports
2x (2x headers, Type A)
Number of SATA Interfaces
- 8x SATA3 Ports
LAN
- 1x RJ45 1000BASE-T Ethernet LAN Ports
- 1x RJ45 10GBASE-T Ethernet LAN Ports
- 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Onboard Audio
7.1 HD Audio w/ optical S/PDIF
Serial Port / Header
1x COM ports (header)
DOM
2x Disk on Module ports
TPM
1x TPM 2.0 Header
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
2200 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable / Tower
Rack Height
4U
Height
18.1"
Width
7.0"
Depth
26.5"
