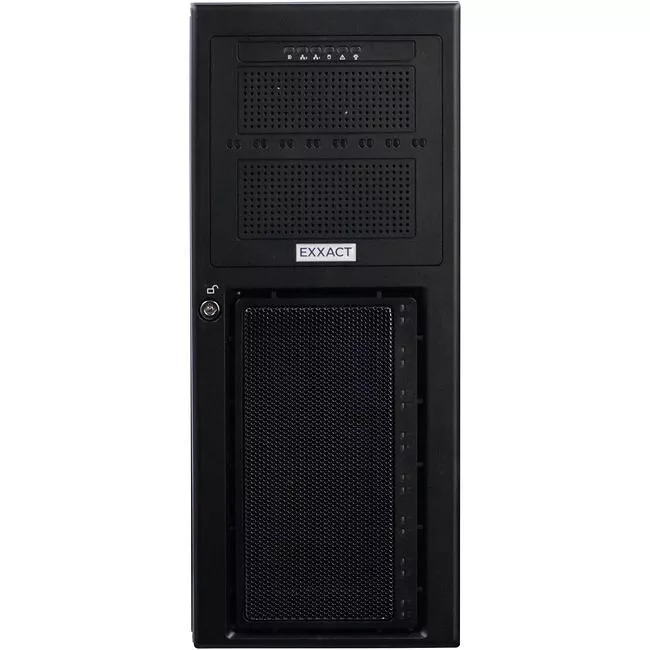

The TensorEX TWS-1686525 is a 4U rack mountable tower supporting 2x Intel Xeon processor Scalable family and a maximum of 768 GB DDR4 memory.
About
The TensorEX TWS-1686525 is a 4U rack mountable tower supporting 2x Intel Xeon processor Scalable family and a maximum of 768 GB DDR4 memory.
Specifications
Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
- Bronze 31XX
- Bronze 32XX
- Silver 41XX
- Silver 42XX
- Gold 51XX
- Gold 52XX
- Gold 61XX
- Gold 62XX
- Platinum 81XX
- Platinum 82XX
Number of UPI Links
3
Thermal Design Power (TDP)
Up to 205W
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory
768 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
12
Controllers
SATA3
- Via C621 chipset
- RAID 0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500 BMC
Network & Communication
Ethernet Technology
- 10GBASE-T
I/O Expansions
PCI Express
- 5x PCI-E 3.0 x16 slots (Supports Double-Wide cards)
- 1x PCI-E 3.0 x16 slot
- 5x PCI-E 3.0 x8 slot
Drive Bays
Hot-Swap
4x 3.5"/2.5" drive bays
Peripheral
3x 5.25" drive bays
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
4 (2x front, 2x rear)
Number of SATA Interfaces
- 4x SATA3 Ports
NVMe
- 2x M.2 (22110/2280 PCI-E & SATA interface)
LAN
- 2x RJ45 10GBASE-T Ethernet LAN Ports
- 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
2000 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable / Tower
Rack Height
4U
Height
16.8"
Width
6.9"
Depth
27.5"
