Highlights:
  • Rack Height: 2U
  • Processor Supported: 1x AMD EPYC 7001/7002 Series
  • Drive Bays: 12x 3.5" Front, 2x 2.5" Rear Hot-Swap
  • Supports 4x U.2 NVMe drives
Contact sales for pricing

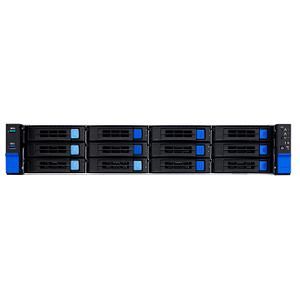

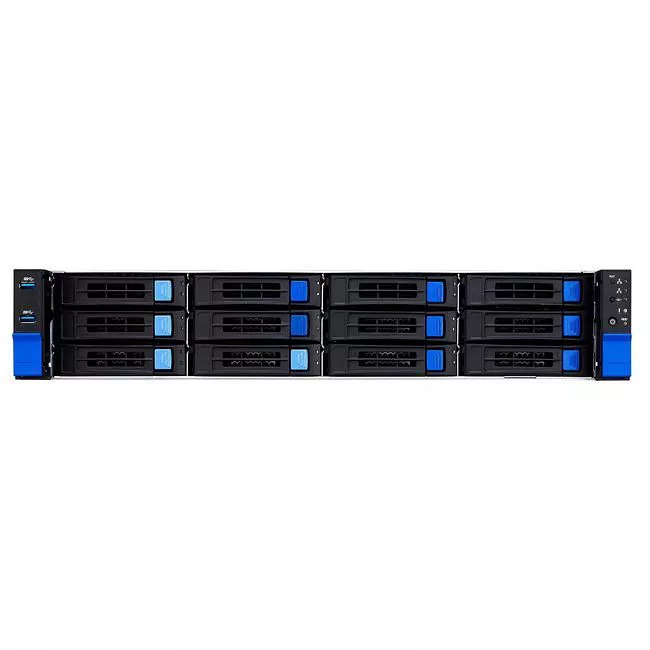

The Tensor TTT-159934675 is a 2U rack mountable storage server supporting 1x AMD EPYC 7001/7002 Series processor and a maximum of 2 TB DDR4 memory.

Processor & Chipset
Number of Processors Supported
1
Processor Socket
SP3
Processor Type
EPYC
Processor Supported
  • 7001-Series
  • 7002-Series
Thermal Design Power (TDP)
Max up to 225 W
Memory
Maximum Memory
2 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-3200/PC4-25600
Number of Total Memory Slots
16
Controllers
Controller Type
SATA3
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
1000BASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
  • 4x PCI-E 4.0 x8 slots (Full-Height / Half-Length)
  • 2x PCI-E 4.0 x16 (Half-Height / Half-Length)
Drive Bays
Hot-swap
  • 12x 3.5"/2.5" Hot-Swap (front)
  • 2x 2.5" Hot-Swap (rear)
  • 8 SATA + 4 U.2 NVMe (front), 2 SATA (rear)
NVMe
4x U.2
Interfaces/Ports
Total Number of USB Ports
5
Number of USB 3.1 Ports
5 (2x rear, 1x cable, 1x Type A)
Number of SATA Interfaces
16
LAN
  • 2x RJ45 1000BASE-T Ethernet LAN Ports
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
COM
2 (1x DB-9, 1x header)
Power Description
Number of Power Supplies
2
Maximum Power Supply Wattage
800 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.43"
Width
17.32"
Depth
25.59"
