Highlights:
- Rack Height: 4U
- Processor: 2x Intel Xeon Scalable family
- Drive Bays: 24x 3.5" SAS3/SATA3 Hot-Swap
- Broadcom 3008 SAS controller

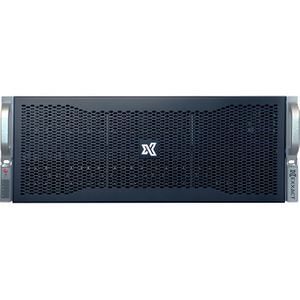

The TensorEX TTT-152622366 is a 4U rack mountable storage server supporting 2x Intel Xeon Scalable family processors and a maximum of 2 TB DDR4 memory.
Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
- Bronze 31XX
- Bronze 32XX
- Silver 41XX
- Silver 42XX
- Gold 51XX
- Gold 52XX
- Gold 61XX
- Gold 62XX
- Platinum 81XX
- Platinum 82XX
Number of UPI
3 UPI up to 10.4 GT/s
Thermal Design Power (TDP)
Up to 205W
Chipset Manufacturer
Intel
Chipset Model
C622
Memory
Maximum Memory
2 TB
Memory Technology
- DDR4 SDRAM
- DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
16
Controllers
SATA3
- Via C622 chipset
- RAID 0, 1, 5, 10
Controllers
SATA3
- Via Intel C622 Chipset
SAS3
- Via Broadcom 3008 controller
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
- 10GBASE-T
I/O Expansions
PCI Express
- 3x PCI-E 3.0 x16 slots
- 4x PCI-E 3.0 x8 slots (slot 2 & 3 occupied by controller and JBOD expansion port)
Drive Bays
Hot-swap
- 24x 3.5" SAS3/SATA3 drive bays
Interfaces/Ports
Number of USB 3.0 Ports
5 (4x rear. 1x Type A)
Number of SATA Interfaces
10
Number of SAS Interfaces
8
LAN
- 2x RJ45 10GBASE-T LAN Ports
- 1x RJ45 IPMI LAN Port
Onboard Video
1x VGA Connector
Serial Port / Header
2 (1x serial port, 1x header)
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
1200 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
7"
Width
17.2"
Depth
26.5"
