MPN: TTT-126946134

Exxact TensorEX 4U 36-Bay Storage Server - 1x AMD EPYC 9005/9004 Series processor - TTT-126946134

Highlights

About

Specifications

The TensorEX TTT-126946134 is a 4U storage server supporting 1x AMD EPYC 9005/9004 Series processors and 8x DDR5 memory slots. Optional controller card required for SATA/SAS support.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

Socket SP5 LGA 6096

Processor Type

Xeon

Processor Supported

9005-Series
9004-Series

Thermal Design Power (TDP)

Up to 300W

Chipset Manufacturer

N/A

Chipset Model

SoC

Memory

Memory Technology

DDR5 SDRAM

Memory Standard

DDR5-4800/PC5-38400

Number of Total Memory Slots

Controllers

Controller Type

NVMe via SoC
SATA/SAS via optional controller card

Network & Communication

Ethernet Technology

10GBASE-T

Number of Network (RJ45) Ports

I/O Expansions

PCI Express

4x PCI-E 5.0 x16 HHHL slots
1x PCI-E 5.0 x4 M.2 slot (2230/2242/2260/2280)

Drive Bays

Hot-Swap

20x 3.5" SATA*/SAS* Front Hot-Swap Drive Bays
4x 3.5" NVMe/SATA*/SAS* Front Hot-Swap Drive Bays

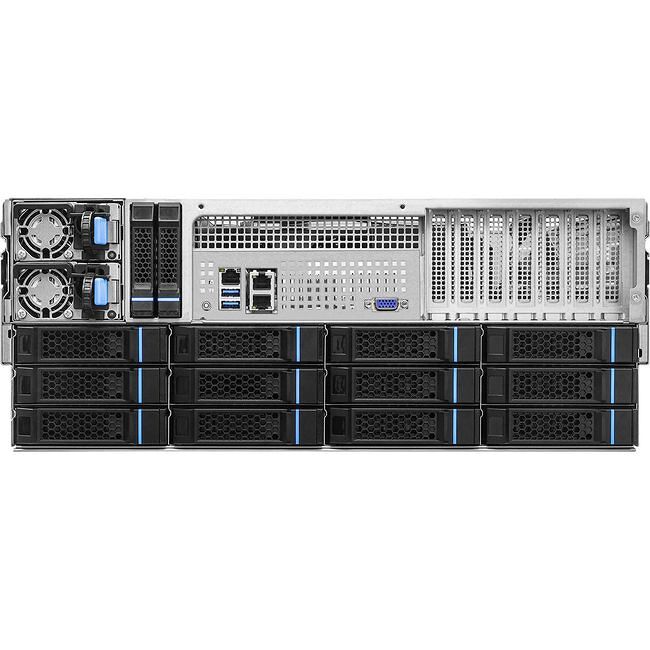

12x 3.5" SATA*/SAS* Rear Hot-Swap Drive Bays
2x 2.5" NVMe Rear Hot-Swap Drive Bays
*Optional HBA/RAID controller required for SATA/SAS

Interfaces/Ports

Total Number of USB Ports

2x USB 3.2 Gen1 ports (Rear, Type A)
2x USB 3.2 Gen1 ports (Front, Type A)

Number of NVMe Interfaces

4x U.2
2x M.2

LAN

2x 10GBASE-T RJ45 Ports
1x RJ45 Dedicated IPMI Port

Onboard Video

1x VGA

Power Description

Number of Power Supplies

Redundant Power Supplies

Yes

Maximum Power Supply Wattage

1200 W

Certification

80 Plus Platinum

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

6.93"

Width

17.01"

Depth

27.52"
