Highlights:
  • Rack Height: 1U
  • Processor Supported: 2x Intel Xeon processor Scalable family
  • Ethernet Technology: 10GBASE-T
  • Drive Bays: 4x 3.5" Hot-Swap NVMe/SATA3
Contact sales for pricing

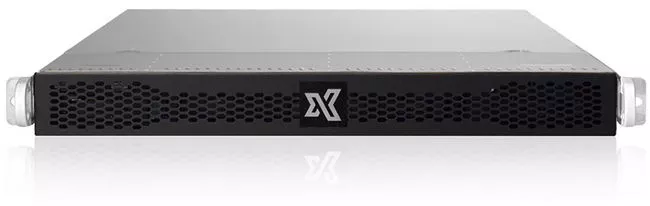

The TensorEX TTT-1233217 is a 1U rack mountable storage server supporting 2x Intel Xeon Scalable family processors and a maximum of 3 TB DDR4 memory per node.

Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 62XX
  • Platinum 81XX
  • Platinum 82XX
Number of UPI
2 UPI up to 10.4 GT/s
Thermal Design Power (TDP)
Up to 205W
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory
3 TB
Memory Technology
  • DDR4 SDRAM
  • DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
24
Controllers
SATA3
  • Via C621 chipset
  • RAID 0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
  • 10GBASE-T
I/O Expansions
PCI Express
  • 2x PCI-E 3.0 x16 slots (Full-height / 10.5" Length)
  • 1x PCI-E 3.0 x8 slots (Low-profile)
  • 1x PCI-E 3.0 x8 slots (Internal Low-profile)
Drive Bays
Hot-swap
  • 4x 3.5" Hot-swap drive bays
  • Supports 4x NVMe/SATA3 hybrid ports
Interfaces/Ports
Total Number of USB Ports
3
Number of USB 3.0 Ports
3 (2x rear, 1x Type A)
Number of SATA Interfaces
4
Number of NVMe Interfaces
  • 4
Number of M.2 Interfaces
  • 1x M.2 NVMe (2242/2260/2280*/22110*)
  • 1x M.2 SATA (2242/2260/2280*/22110*) via optional SATA cable
  • * Not supported if installing both NVMe & SATA M.2
LAN
  • 4x RJ45 10GBASE-T LAN Ports
  • 1x RJ45 IPMI LAN Port
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
750 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
29"
