Highlights:
- Rack Height: 2U
- Number of nodes: 2
- Processor (Per Node): 2x Intel Xeon Scalable family
- Drive Bays (Per Node): 12x 2.5" Hot-Swap NVMe

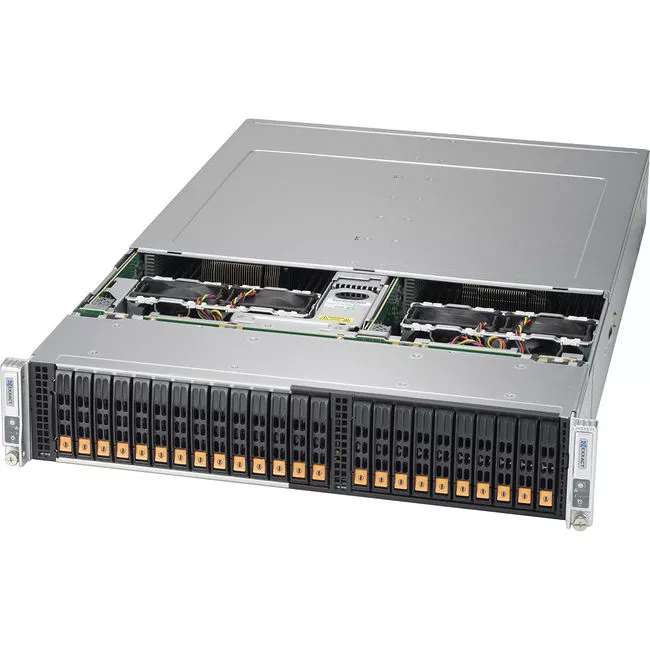

The TensorEX TTT-1233209 is a 2U 2x node rack mountable storage server supporting 2x Intel Xeon Scalable family processors and a maximum of 3 TB DDR4 memory per node.
Processor & Chipset
Number of Nodes
2
Number of Processors Supported (per node)
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
- Bronze 31XX
- Bronze 32XX
- Silver 41XX
- Silver 42XX
- Gold 51XX
- Gold 52XX
- Gold 61XX
- Gold 62XX
- Platinum 81XX
- Platinum 82XX
Number of UPI
2 UPI up to 10.4 GT/s
Thermal Design Power (TDP)
Up to 205W
Chipset Manufacturer
Intel
Chipset Model
C621
Memory (per node)
Maximum Memory
3 TB
Memory Technology
- DDR4 SDRAM
- DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
24
Controllers (per node)
SATA3
- Via C621 chipset
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication (per node)
Ethernet Technology
- Via optional SIOM module
I/O Expansions (per node)
PCI Express
- 2x PCI-E 3.0 x8 slots
- 1x PCI-E 3.0 x16 slot (Low-profile)
- 1x SIOM card support
Drive Bays
Hot-swap
- 12x 2.5" Hot-swap NVMe drive bays
M.2
- 2x M.2 SATA/NVMe slots
Interfaces/Ports (per node)
Total Number of USB Ports
2
Number of USB 3.0 Ports
2 (rear)
Number of NVMe Interfaces
- 12
Optional SIOM modules (1x per node)
- 2x RJ45 1000BASE-T LAN Ports
- 4x RJ45 1000BASE-T LAN Ports
- 2x SFP+ 10G Ports
- 4x SFP+ 10G Ports
- 2x RJ45 10GBASE-T LAN Ports
- 1x QSFP IB FDR & 2x RJ45 1000BASE-T LAN Ports
- 2x QSFP IB FDR & 2x RJ45 1000BASE-T LAN Ports
Onboard Video
1x VGA
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
2200 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.47"
Width
17.6"
Depth
28.75"
